Barebone PC
// Barebone PC
// Active (fan cooling) cooled
// 3 x Display
// [6 | 9] x Serial
// [8 | 14] x USB (Back side)
// 2 x G-LAN (Back side)
// 2 x PCI
// 1 x PCIe x4
// 1 x PCIe x16
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

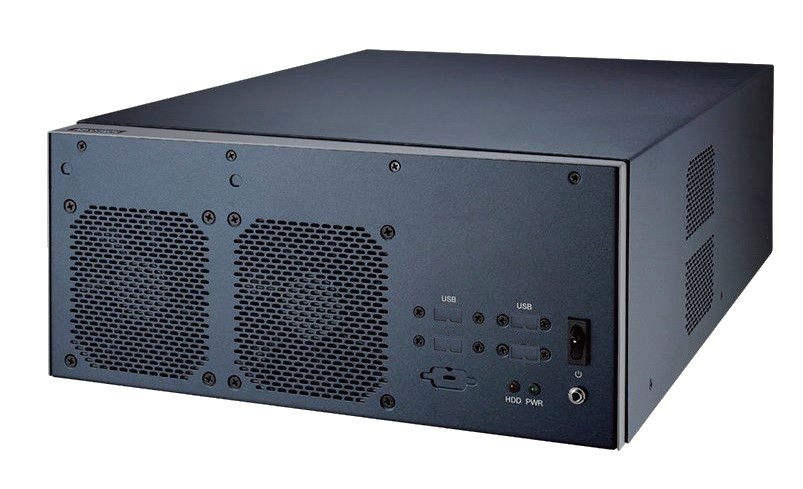

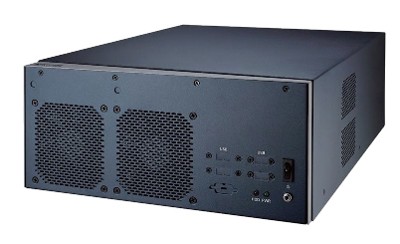

Basic Module: Advantech EPC-B3508
| General information | ||||
| SKU / Item Number | EPC-B3508 | |||
| Product Basic Data | ||||
| Manufacturer | Advantech | |||
| System | ||||
| Processor | Socket | LGA 1700 (H6) | ||
| Thermal Design Power (TDP) | 65 W | |||
| Chipset | Intel H610E | |||
| Memory | Structure | 288-pin DDR4 DIMM | ||
| Memory Type | DDR4 | |||
| DIMM Type | Unbuffered DIMM | |||
| Frequency | 3200 MHz | |||
| Slots | 2 Pce | |||
| Maximum expansion | 64 GB | |||
| BIOS | AMI UEFI 256 Mbit SPI | |||
| Extension | ||||
| PCI | Quantity | 2 Pce | ||
| PCI Interfaces | 2x PCI slots | |||
| PCIe x4 | x4 signal | 1 Pce | ||
| PCIe x16 | x16 signal | Quantity | 1 Pce | |
| PCIe Interfaces | 1x PCIe x4, 1x PCIe x16 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I219V PCIe (10/100/1000 Mbps) | |
| Quantity | 1 Pce | |||
| Controller | Chipset | Intel I226V PCIe (10/100/1000/2500 Mbps) | ||
| Quantity | 1 Pce | |||
| Network | 2x G-LAN | |||

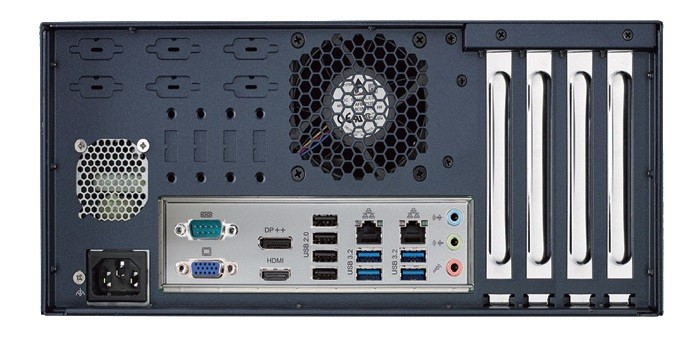

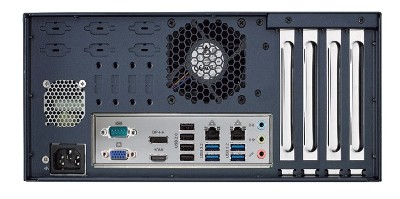

| Externe I/O (Rear Panel) | ||||
| Display | VGA | 1 Pce | ||
| HDMI | 1 Pce | |||
| DisplayPort | 1 Pce | |||
| Audio | Line-in | 1 Pce | ||
| Line Out | 1 Pce | |||
| Mic-In | 1 Pce | |||
| Ethernet | RJ-45 | 2 Pce | ||
| Serial | RS-232 | DB-9 | 6 Pce, 9 Pce | |
| USB | USB 2.0 | 4 Pce, 6 Pce | ||
| USB 3.0 | 4 Pce, 8 Pce | |||
| Safety | ||||
| Trusted Platform Module (TPM) | Available Upon Request, v2.0 | |||
| Power Supply | ||||
| Typ (Input) | AC | Modules | 1 Pce | |
| Connector | C19 | |||
| Maximum power consumption | 350 W | |||
| Cooling | ||||
| Implementation | Active (fan cooling) | |||
| Active | Fan | Quantity | 2 Pce | |
| Inserts | ||||
| Internal | 2.5" installation slot | 4 Pce | ||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 40°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 10 to 85%, non-condensing | ||
| Dimensions | Form factor | Barebone PC | ||
| Width | 360 mm | |||
| Deep | 310 mm | |||
| Height | 133,4 mm | |||
| Height units | 3 HE | |||
| Vibration | with HDD | 0.5G, 5 to 500 Hz | ||
| with SSD | 5~500 Hz, 1G | |||
| Weight | 9300 g | |||
| Controls | Power | 1 Pce | ||
| Status indicators | Storage | 1 Pce | ||
| Power | 1 Pce | |||
| Slots and Brackets | Standard | 4 Pce | ||
| Antenna holes | 2 Pce | |||
| OS / Software | ||||
| Windows Embedded | Windows 10 Enterprise IoT LTSC (2021) | wind support | ||
| Windows 11 IoT | is supported | |||
| Linux | Distribution | Ubuntu 22.04 | ||
| Supported OS | Linux, Windows Embedded | |||
