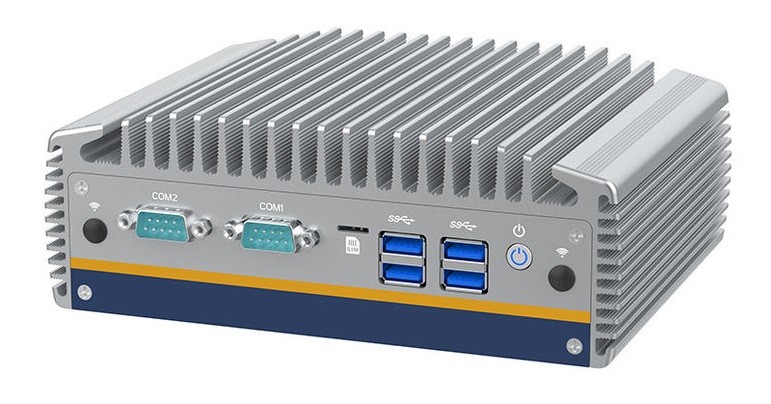

Embedded System
// Embedded System
// [Intel Core i3-1215U | Intel Core i5-1235U | Intel Core i7-1255U]
// Passive cooled
// 3 x Display
// 2 x Serial
// 4 x USB (Front page)
// 3 x G-LAN (Back side)
// 3 x M.2 Slot
// 12V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request
Basic Module: Artessa IT AIT-B15
| General information | ||||
| SKU / Item Number | AIT-B15 | |||
| Product Basic Data | ||||
| Manufacturer | Artessa IT | |||
| System | ||||
| Processor | Series | Intel Alder Lake | ||
| Number | Intel Core i3-1215U, Intel Core i5-1235U, Intel Core i7-1255U | |||
| CPU cores | 6 Pce, 10 Pce | |||
| Threads | 8 Pce, 12 Pce | |||
| Socket | BGA 1744 | |||
| Performance Core Max Turbo Frequency | 4,4 GHz, 4,7 GHz | |||
| Efficient-core Max Turbo Frequency | 3,3 GHz, 3,5 GHz | |||
| Cache | 10 MB, 12 MB | |||
| Basic power consumption of the processor | 15 W | |||
| Maximum Turbo Power Consumption | 55 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 262-pin SO-DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| DIMM Type | Unbuffered SO-DIMM | |||
| DIMM data transfer rate | 4800 MT/s | |||
| Slots | 1 Pce | |||
| Maximum expansion | 32 GB | |||
| Graphics | ||||
| Processor | Intel Graphics, Intel UHD Graphics | |||
| Screens (Multi-display) | 3 displays | |||
| Extension | ||||
| M.2 | Slot 1 | Key ID | M | |
| Interface | NVMe, PCIe ×4 (Gen 4), SATA III | |||
| Supported dimensions | 2280 | |||
| Slot 2 | Key ID | B | ||
| Interface | 4G/LTE, 5G / Storage Module, USB 3.0 | |||
| Supported dimensions | 3052 | |||
| Slot 3 | Key ID | E | ||
| Interface | CNVi (Connected Network Interface), USB 2.0, WiFi + Bluetooth | |||
| Supported dimensions | 2230 | |||
| M.2 Key IDs | B, E, M | |||
| Storage | M.2 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I226V PCIe (10/100/1000/2500 Mbps) | |
| Quantity | 3 Pce | |||
| Network | 3x G-LAN | |||
| Internal I/O | ||||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 1 Pce | ||

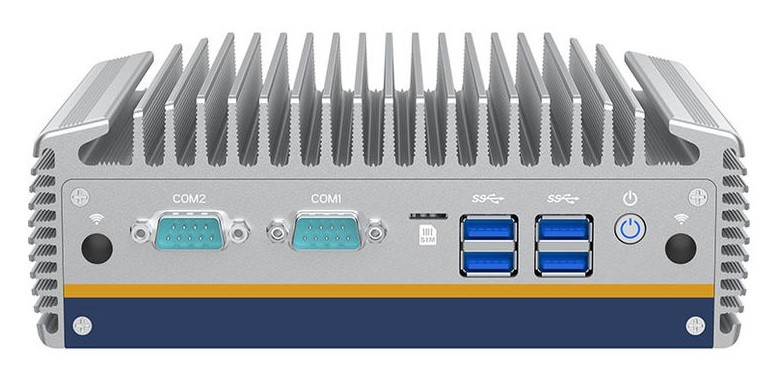

| Externe I/O (Front Panel) | ||||
| Serial | RS-232 | DB-9 | 2 Pce | |
| USB | USB 3.2 (Gen 2) | 4 Pce | ||
| SIM card slot | 1 Pce | |||

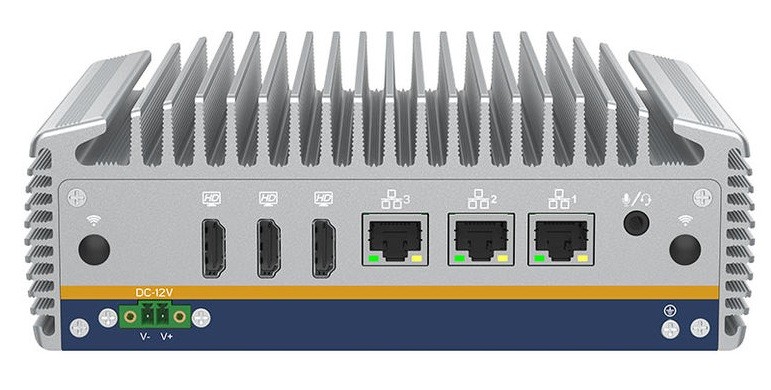

| Externe I/O (Rear Panel) | ||||
| Display | HDMI | 3 Pce | ||
| Audio | Combo Jack | 1 Pce | ||
| Ethernet | RJ-45 | 3 Pce | ||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | v2.0 | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | No | |
| Range | 12V | |||
| Connector | 2-pin terminal connector | |||
| Power supply - Input | DC: 12V | |||
| Cooling | ||||
| Implementation | Passive | |||
| Inserts | ||||
| Internal | 2.5" installation slot | 1 Pce | ||
| Mechanical / Environment | ||||
| Temperature | Operation (SSD) | -20° to 60°C | ||
| Operation (HDD) | 0° to 40°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Dimensions | Form factor | Embedded System | ||
| Width | 225,5 mm | |||
| Deep | 140 mm | |||
| Height | 68,5 mm | |||
| Weight | 1100 g | |||
| Controls | Power | 1 Pce | ||
| Status indicators | Power | 1 Pce | ||
| Antenna holes | 4 Pce | |||
| Color | Silver | |||
| Material | Aluminum | |||
| Mounting option | VESA, Wall Mount | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| RoHS compliant | Yes | |||
