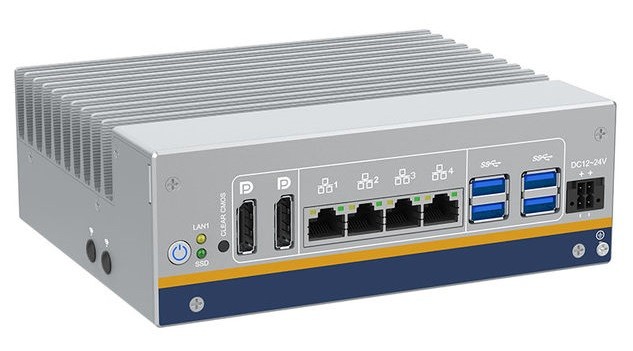

Embedded System
// Embedded System
// [Intel Core i5-1235U | Intel Core i7-1255U]
// Passive cooled
// 2 x Display
// 4 x USB (Front page)
// 4 x G-LAN (Front page)
// 2 x Mini-PCIe
// 1 x M.2 Slot
// 12 to 24V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request
Basic Module: Artessa IT AIT-B16
| General information | ||||
| SKU / Item Number | AIT-B16 | |||
| Product Basic Data | ||||
| Manufacturer | Artessa IT | |||
| System | ||||
| Processor | Series | Intel Alder Lake | ||
| Number | Intel Core i5-1235U, Intel Core i7-1255U | |||
| CPU cores | 10 Pce | |||
| Threads | 12 Pce | |||
| Socket | BGA 1744 | |||
| Performance Core Max Turbo Frequency | 4,4 GHz, 4,7 GHz | |||
| Efficient-core Max Turbo Frequency | 3,3 GHz, 3,5 GHz | |||
| Cache | 12 MB | |||
| Basic power consumption of the processor | 15 W | |||
| Maximum Turbo Power Consumption | 55 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 262-pin SO-DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| DIMM Type | Unbuffered SO-DIMM | |||
| DIMM data transfer rate | 4800 MT/s | |||
| Slots | 2 Pce | |||
| Maximum expansion | 64 GB | |||
| Graphics | ||||
| Processor | Intel Iris Xe Graphics | |||
| Screens (Multi-display) | 2 displays | |||
| DisplayPort | Maximum resolution | 7680 x 4320 at 60 Hz | ||
| Version | 1.4 | |||
| Extension | ||||
| Mini-PCIe | Full installation depth | Quantity | 2 Pce | |
| USB support | Yes | |||
| mSATA support | Yes | |||
| PCIe Interfaces | 2x Mini-PCIe slots | |||
| M.2 | Slot 1 | Key ID | M | |
| Interface | NVMe, PCIe ×1 (Gen 3), SATA III | |||
| Supported dimensions | 2280 | |||
| M.2 Key IDs | M | |||
| SIM | Quantity | 1 Pce | ||
| Form Factor (Slot) | Nano SIM | |||
| Storage | M.2 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I210AT PCIe (10/100/1000 Mbps) | |
| Quantity | 3 Pce | |||
| Controller | Chipset | Intel I219LM PCIe with AMT with Core i5/i7 (10/100/1000 Mbps) | ||
| Quantity | 1 Pce | |||
| Network | 4x G-LAN | |||

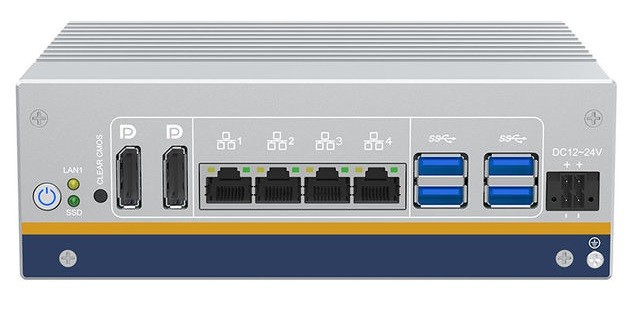

| Externe I/O (Front Panel) | ||||
| Display | DisplayPort | 2 Pce | ||
| Ethernet | RJ-45 | 4 Pce | ||
| USB | USB 3.0 | 4 Pce | ||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | v2.0 | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 12 to 24V | |||
| Connector | 4-pin terminal plug | |||
| Power supply - Input | DC: 12 to 24V | |||

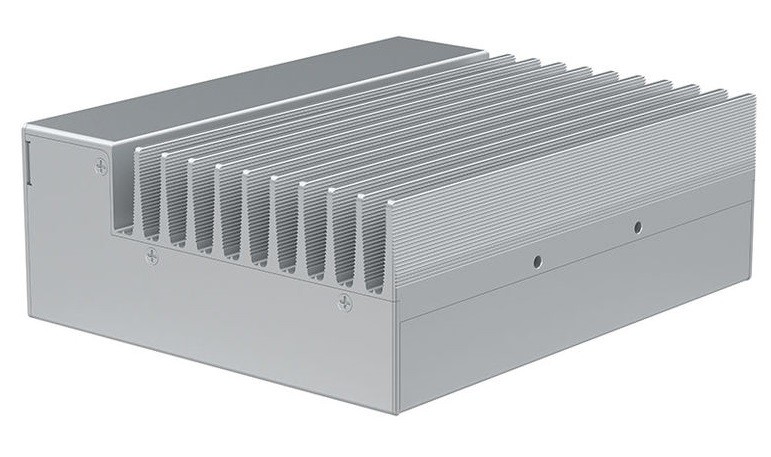

| Cooling | ||||
| Implementation | Passive | |||
| Mechanical / Environment | ||||
| Temperature | Operation (SSD) | -20° to 60°C | ||
| Operation (HDD) | 0° to 40°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Dimensions | Form factor | Embedded System | ||
| Width | 170 mm | |||
| Deep | 140 mm | |||
| Height | 58 mm | |||
| Weight | 1540 g | |||
| Controls | Power | 1 Pce | ||
| Reset | 1 Pce | |||
| Status indicators | Power | 1 Pce | ||
| Serial (RS-232) | 1 Pce | |||
| Gigabit Ethernet | 1 Pce | |||
| Antenna holes | 2 Pce | |||
| Color | Silver | |||
| Material | Aluminum | |||
| Mounting option | DIN Rail, Wall Mount | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| RoHS compliant | Yes | |||
