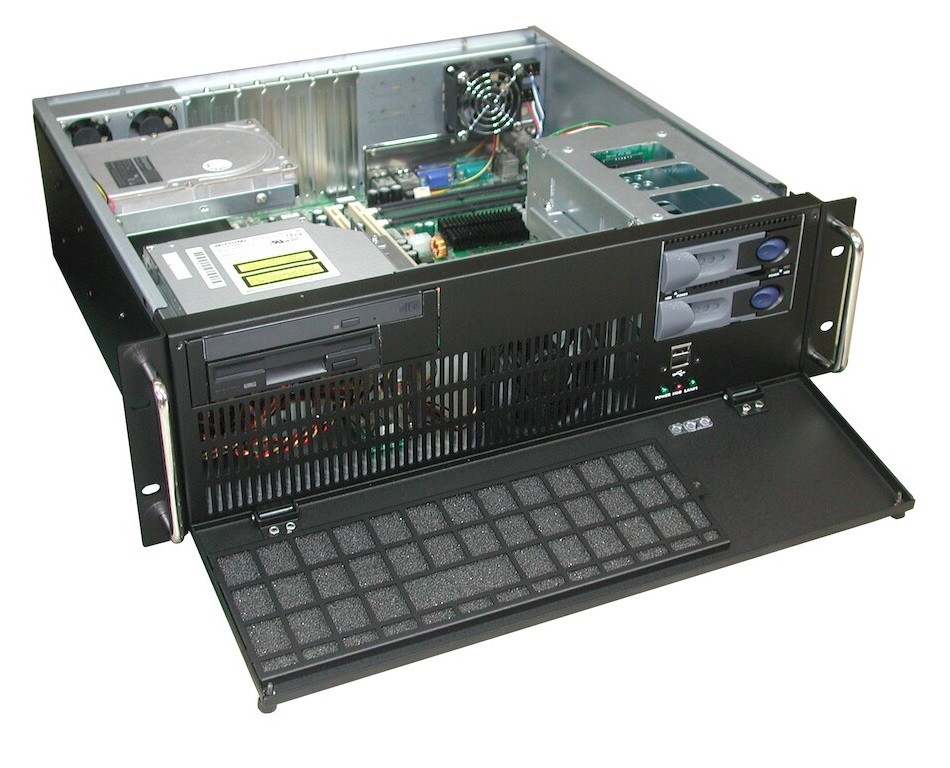

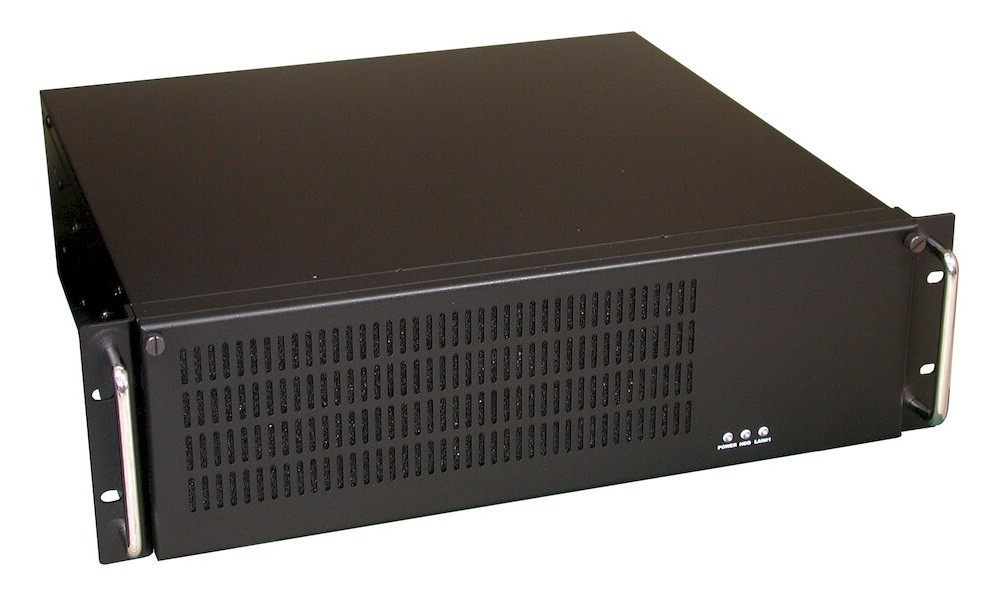

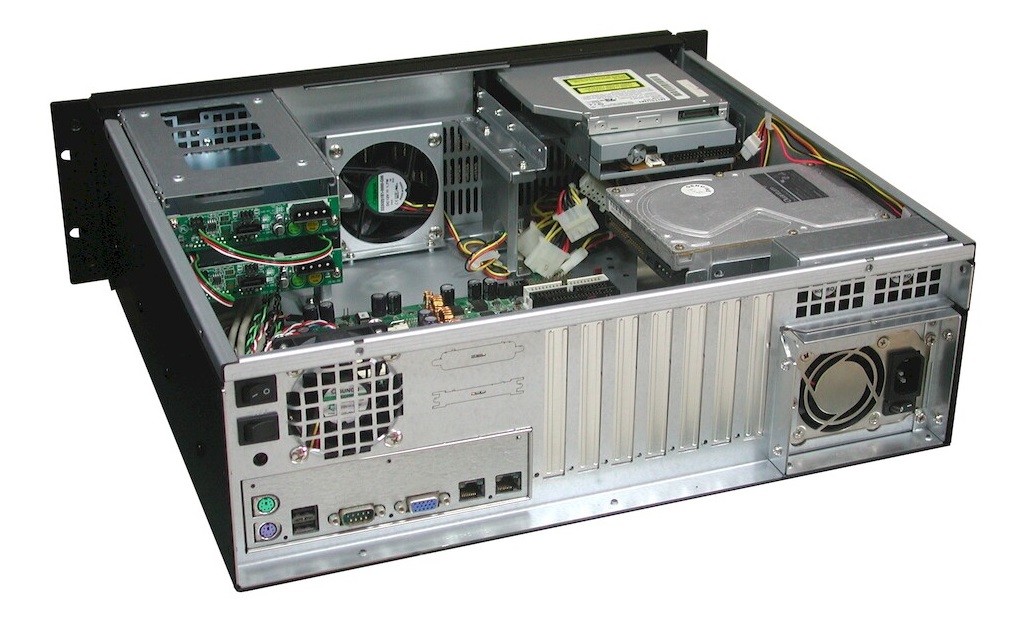

3U 19" Rack Case
// Guanghsing
// GHI-352A
// -
Sales only to business customers.
Delivery time: upon request
Basic Module: Guanghsing GHI-352A
| General information | ||||
| SKU / Item Number | GHI-352A | |||
| Product Basic Data | ||||
| Manufacturer | Guanghsing | |||
| Externe I/O (Front Panel) | ||||
| USB | USB 2.0 | 2 Pce | ||
| Inserts | ||||
| Internal | 3.5" Drive Bay | 1 Pce | ||
| external | 3.5" Drive Bay | 3 Pce | ||
| 5.25" Slim Drive Bay | 1 Pce | |||
| Cooling | ||||
| Implementation | Active (fan cooling) | |||
| Active | Fan | Quantity | 1 Pce | |
| Diameter | 80 mm | |||
| Air flow (at 100%) | 41 cfm | |||
| Fan | Quantity | 2 Pce | ||
| Diameter | 40 mm | |||
| Air flow (at 100%) | 11 cfm | |||
| Motherboards | ||||
| Supported motherboards | ATX | |||
| Mechanical / Environment | ||||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Dimensions | Form factor | 19-inch | ||
| Width | 483 mm | |||
| Deep | 400 mm | |||
| Height | 133 mm | |||
| Height units | 3 HE | |||
| Weight | 12800 g | |||
| Controls | Power | 1 Pce | ||
| Reset | 1 Pce | |||
| Status indicators | Storage | 1 Pce | ||
| Power | 1 Pce | |||
| Gigabit Ethernet | 1 Pce | |||
| Slots and Brackets | Standard | 7 Pce | ||
| Color | Black | |||
| Material | Steel | |||
| Mounting option | Rackmount | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| RoHS compliant | Yes | |||
