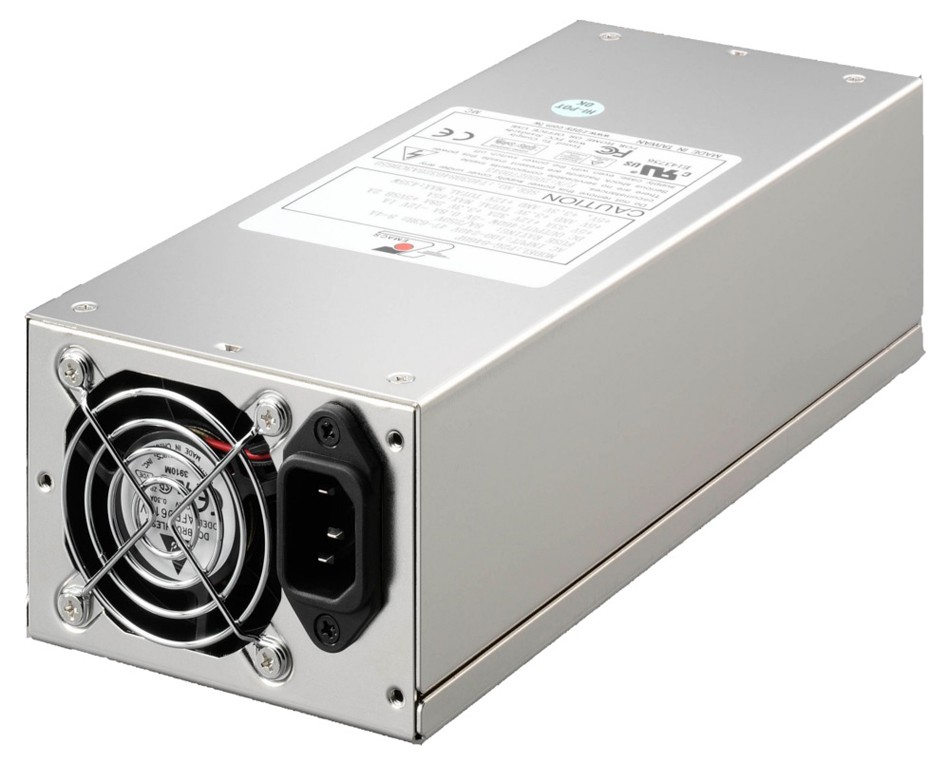

ZIPPY P2G-6400P

2U Power Supplies, Single

PRODUCT FEATURES

// 2U Power Supplies
// Single
// 400 W

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

Basic Module: ZIPPY P2G-6400P

General information
	SKU / Item Number			P2G-6400P
Product Basic Data
	Manufacturer			ZIPPY
Power Supply
	Typ (Input)	AC	Range	90~264V
			Input frequency	47 to 63 Hz
			Connector	C14
	Power supply - Input			AC: 90~264V
	Output wattage			400 W
	Output Voltage	+5V	Output Current Min.	5 A
			Output Current Max	33 A
			Regulation Load (±)	5 %
			Regulation Line (±)	1 %
			Output Ripple & Noise Max	60 mV
		+12V	Output Current Min.	2,5 A
			Output Current Max	25 A
			Regulation Load (±)	5 %
			Regulation Line (±)	1 %
			Output Ripple & Noise Max	100 mV
		-12V	Output Current Min.	0,1 A
			Output Current Max	1 A
			Regulation Load (±)	5 %
			Regulation Line (±)	1 %
			Output Ripple & Noise Max	150 mV
		+3.3V	Output Current Min.	1 A
			Output Current Max	28 A
			Regulation Load (±)	5 %
			Regulation Line (±)	1 %
			Output Ripple & Noise Max	50 mV
		+5V Standby	Output Current Min.	0,1 A
			Output Current Max	2 A
			Regulation Load (±)	5 %
			Regulation Line (±)	1 %
			Output Ripple & Noise Max	60 mV
		-5V	Output Current Min.	0,05 A
			Output Current Max	0,8 A
			Regulation Load (±)	5 %
			Regulation Line (±)	1 %
			Output Ripple & Noise Max	120 mV
	Efficiency	At 100% load / 25°C		71 %
Mechanical / Environment
	Temperature	Operation		0° to 40°C
	Relative humidity	Operation		20 to 80%, non-condensing
	Dimensions	Form factor		2U
		Width		100 mm
		Deep		240 mm
		Height		70 mm
Certificates / Conformities
	CE			Yes
	UL			Yes
	FCC	Class B		Yes
	CCC			Yes
	Additional certificates / compliance approvals			EN 55032, EN 61000-3-2, EN 61000-4-5 (2 kV Surge Protection)
	RoHS compliant			Yes
