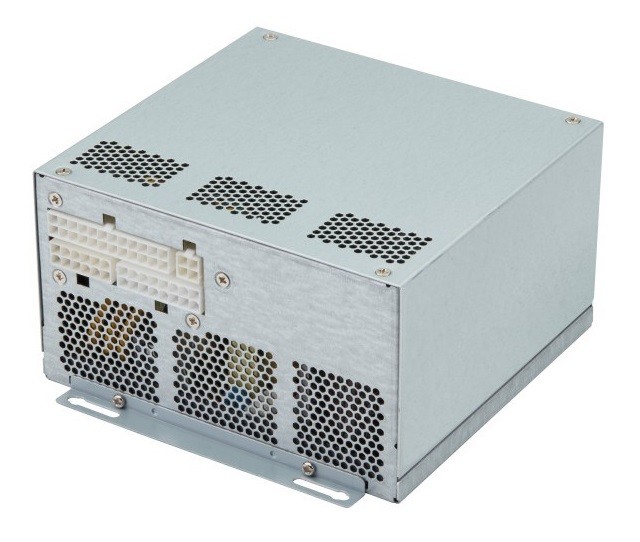

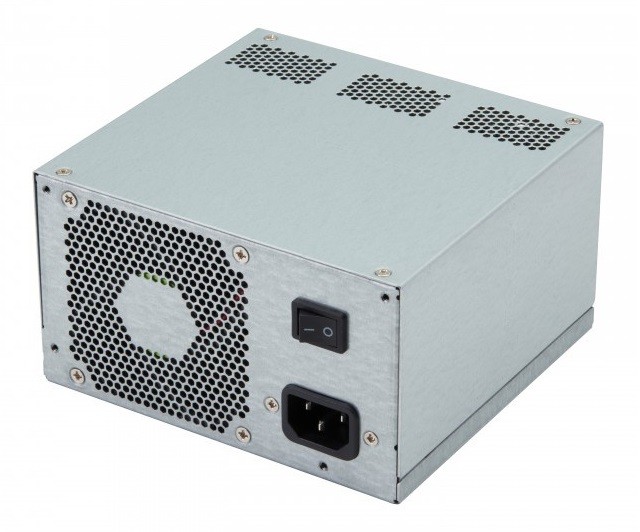

Fortron Source FSP300-70AGGBM(M)

PS/2 Power Supplies - Single

PRODUCT FEATURES

// PS/2 Power Supplies - Single
// 300 W

PRODUCT PRICE

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

INQUIRY
CHAT
PHONE
COMPARE
SAVE

Basic Module: Fortron Source FSP300-70AGGBM(M)

General information
	SKU / Item Number			FSP300-70AGGBM(M)
Product Basic Data
	Manufacturer			Fortron Source
Power Supply
	Typ (Input)	AC	Range	90~264V
			Input frequency	47 to 63 Hz
			Connector	C19
	Power supply - Input			AC: 90~264V
	Output wattage			300 W
	Output Voltage	+5V	Output Current Min.	0,5 A
			Output Current Max	16 A
			Regulation Load (±)	5 %
			Output Ripple & Noise Max	50 mV
		-12V	Output Current Min.	0 A
			Output Current Max	0,5 A
			Regulation Load (±)	10 %
			Output Ripple & Noise Max	120 mV
		+3.3V	Output Current Min.	0,3 A
			Output Current Max	19 A
			Regulation Load (±)	5 %
			Output Ripple & Noise Max	50 mV
		+5V Standby	Output Current Min.	0 A
			Output Current Max	3 A
			Regulation Load (±)	5 %
			Output Ripple & Noise Max	50 mV
		+12V1	Output Current Min.	0,5 A
			Output Current Max	17 A
			Regulation Load (±)	5 %
			Output Ripple & Noise Max	120 mV
		+12V2	Output Current Min.	0,5 A
			Output Current Max	17 A
			Regulation Load (±)	5 %
			Output Ripple & Noise Max	120 mV
Mechanical / Environment
	Temperature	Operation		0° to 50°C
		Storage		-20° to 80°C
	Relative humidity	Operation		5 to 85%, non-condensing
		Storage		5 to 95%, non-condensing
	Dimensions	Form factor		PS/2
		Width		140 mm
		Deep		150 mm
		Height		86 mm
	MTBF (Mean Time Between Failures)	MTBF at 25°C		100.000 h
Certificates / Conformities
	CE			Yes
	UL			Yes
	FCC	Class B		Yes
	CCC			Yes
	Additional certificates / compliance approvals			80 PLUS Gold, EN 61000-3-2, EN 62368-1, IEC 60950-1
	RoHS compliant			Yes
