Sensor Modules
// M.2 Sensor Modules
Sales only to business customers.
Delivery time: upon request

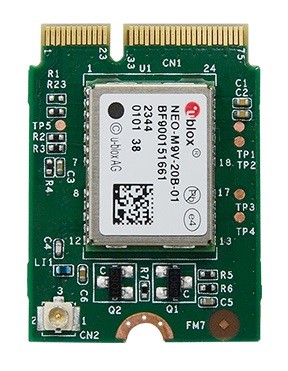

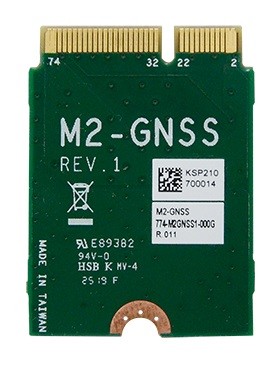

Basic Module: DFI M2-GNSS
| General information | ||||
| SKU / Item Number | M2-GNSS | |||
| Product Basic Data | ||||
| Manufacturer | DFI | |||
| Product ID | 770-M2GNSS1-000G | |||
| Extension | ||||
| M.2 | Slot 1 | Key ID | E | |
| Interface | USB 2.0 | |||
| Supported dimensions | 2230 | |||
| M.2 Key IDs | E | |||
| Network | ||||
| Cellular Network | GNSS (Global Navigation Satellite System) | BeiDou, Galileo, GLONASS, GPS | ||
| Mechanical / Environment | ||||
| Temperature | Operation | -40°C to 85°C | ||
| Storage | -40°C to 85°C | |||
| Dimensions | Form factor | M.2 | ||
| Type | 2230 | |||
| Interface | USB 2.0 | |||
| Width | 22 mm | |||
| Deep | 30 mm | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| RoHS compliant | Yes | |||
We are happy to advise you personally.
