2U Server
// 19-inch
// null
// LGA 1851
// DDR5
// 2 x G-LAN (Back side)
Sales only to business customers.
Delivery time: upon request
Basic Module: BCM (Baseboard Management Controller) HPS-RX880W2A
| General information | ||||
| SKU / Item Number | HPS-RX880W2A | |||
| Product Basic Data | ||||
| Manufacturer | BCM (Baseboard Management Controller) | |||
| Product ID | HPS-RX880W2AA-A1R | |||
| System | ||||
| Processor | Series | Intel Arrow Lake | ||
| Socket | LGA 1851 | |||
| Chipset | Intel W880 | |||
| Memory | Structure | 288-pin DDR5 DIMM | ||
| Memory Type | DDR5 | |||
| DIMM Type | Unbuffered DIMM | |||
| DIMM data transfer rate | 5600 MT/s | |||
| Slots | 4 Pce | |||
| Maximum expansion | 192 GB | |||
| ECC (Error-Correcting Code) | is supported | |||
| Extension | ||||
| PCIe x4 | Generation | 4 | ||
| x4 signal | 1 Pce | |||
| PCIe x16 | x4 signal | Generation | 4 | |
| Quantity | 1 Pce | |||
| x8 signal | Generation | 5 | ||
| Quantity | 1 Pce | |||
| x16 signal | Generation | 5 | ||
| Quantity | 1 Pce | |||
| PCIe Interfaces | 1x PCIe x4, 3x PCIe x16 | |||
| M.2 | Slot 1 | Key ID | E | |
| Interface | PCIe ×2 (Gen 4), USB 2.0 | |||
| Supported dimensions | 2230 | |||
| Slot 2 | Key ID | M | ||
| Interface | NVMe, PCIe ×4 (Gen. 5) | |||
| Supported dimensions | 2242, 2280, 22110 | |||
| Slot 3 | Key ID | M | ||
| Interface | NVMe, PCIe ×4 (Gen 4) | |||
| Supported dimensions | 2242, 2280, 22110 | |||
| M.2 Key IDs | E, M | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I226LM PCIe (10/100/1000/2500 Mbps) | |
| Quantity | 2 Pce | |||
| Network | 2x G-LAN | |||

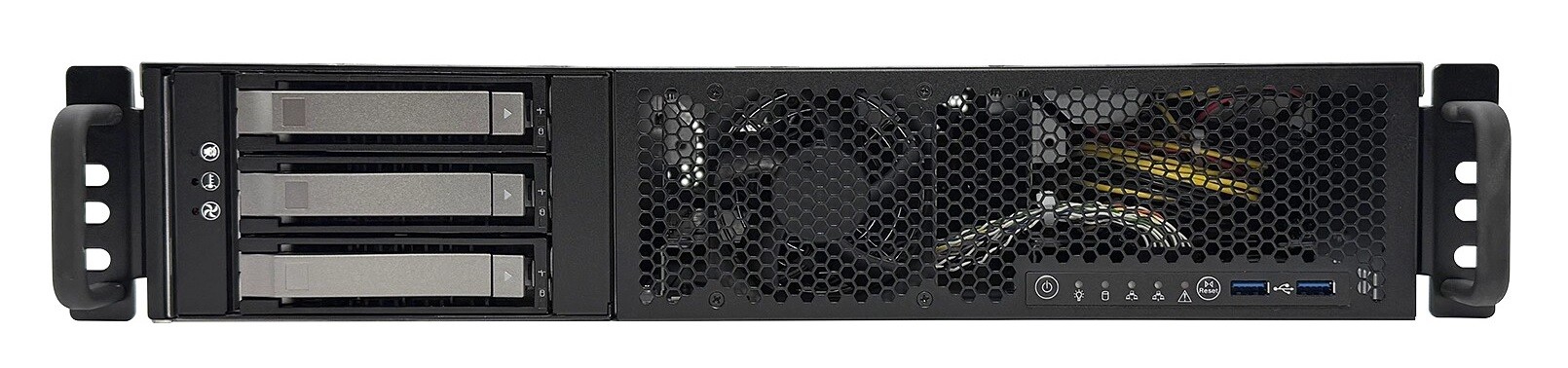

| Externe I/O (Front Panel) | ||||
| USB | USB 3.2 (Gen 2) | 2 Pce | ||

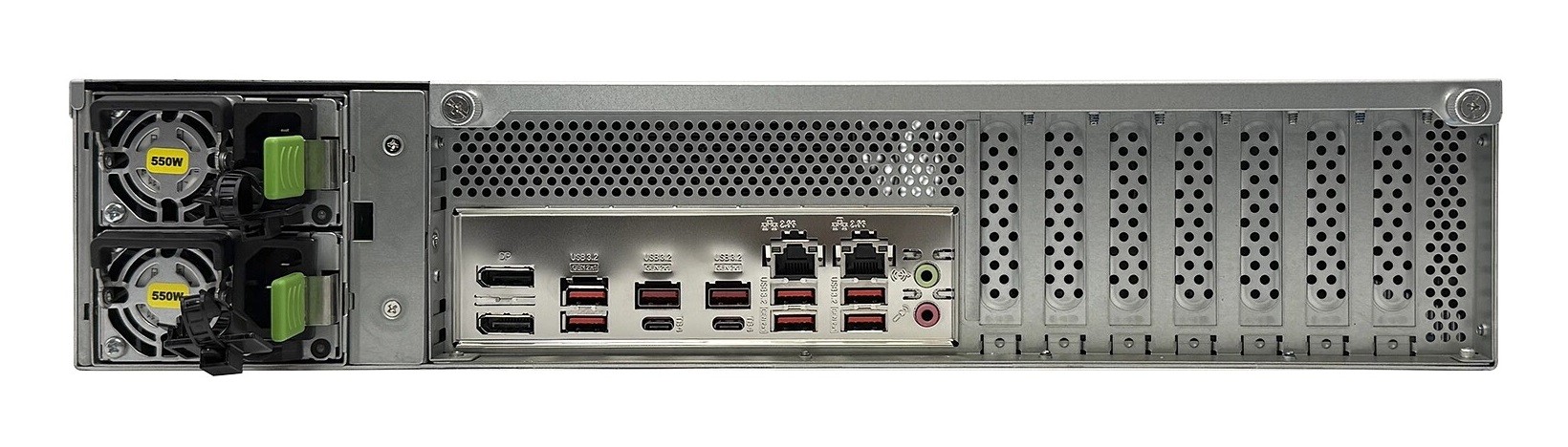

| Externe I/O (Rear Panel) | ||||
| Display | DP++ | 2 Pce | ||
| Audio | Line Out | 1 Pce | ||
| Mic-In | 1 Pce | |||
| Ethernet | RJ-45 | 2 Pce | ||
| Thunderbolt | Thunderbolt 4 USB Type-C | |||
| USB | USB 3.2 (Gen 2) | 8 Pce | ||
| Safety | ||||
| Trusted Platform Module (TPM) | v2.0 | |||
| Power Supply | ||||
| Typ (Input) | AC | Modules | 2 Pce | |
| Connector | C14 | |||
| Redundant | Yes, dual AC | |||
| Maximum power consumption | 550 W | |||
| Cooling | ||||
| Implementation | Active (fan cooling) | |||
| Active | Fan | Quantity | 2 Pce | |
| Diameter | 80 mm | |||
| height | 25 mm | |||
| Inserts | ||||
| Internal | 3.5" Drive Bay | 4 Pce | ||
| external | 2.5" installation slot | 3 Pce | ||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 40°C | ||
| Storage | -20° to 60°C | |||
| Relative humidity | Operation | 10 to 85%, non-condensing | ||
| Dimensions | Form factor | 19-inch | ||
| Width | 504 mm | |||
| Deep | 432,4 mm | |||
| Height | 88 mm | |||
| Height units | 2 HE | |||
| Weight | 10150 g | |||
| Controls | Power | 1 Pce | ||
| Reset | 1 Pce | |||
| Status indicators | Storage | 1 Pce | ||
| Power | 1 Pce | |||
| Gigabit Ethernet | 2 Pce | |||
| System Status | 1 Pce | |||
| Slots and Brackets | low profile | 7 Pce | ||
| Color | Black / silver | |||
| Mounting option | Rackmount | |||
| OS / Software | ||||
| Windows | Windows 11 | Supported | ||
| Linux | Distribution | Linux | ||
| Supported OS | Windows, Linux | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| RoHS compliant | Yes | |||
