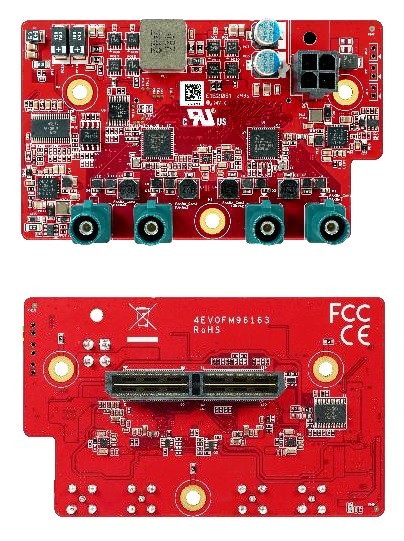

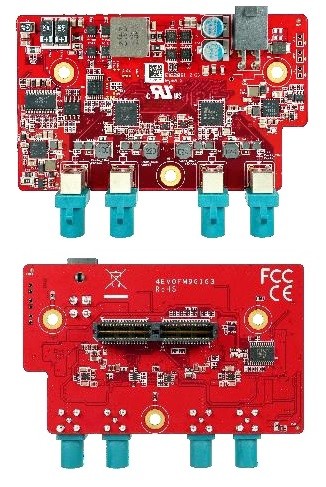

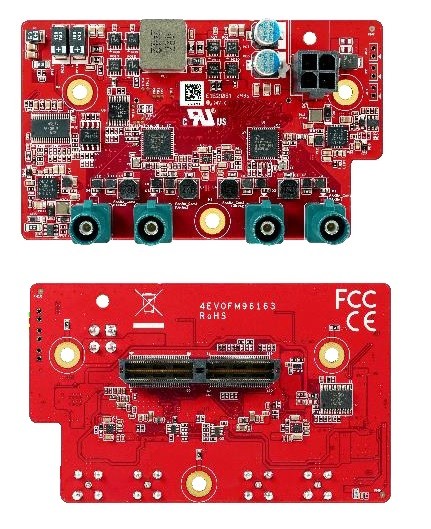

Innodisk EB120-1S4F

EB120-1S4F-11, EB120-1S4F-12, EB120-1S4F-13

Camera Adapter Boards

PRODUCT FEATURES

// Camera Adapter Boards

CONFIGURATION

Please configure your desired product.
Standard Configuration Custom Configuration

PRODUCT PRICE

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

PRODUCT INFORMATION
CONFIGURATIONS

Basic Module: Innodisk EB120-1S4F

General information
SKU / Item NumberEB120-1S4FEB120-1S4F-11, EB120-1S4F-12, EB120-1S4F-13
Product Basic Data
ManufacturerInnodisk
Internal I/O
Image Capture InterfacesCamera Input 1Quantity4 Pce
StandardMIPI CSI-2
Power Supply
Typ (Input)DCWide RangeNo
Range12V
ConnectorDC Power Jack
Power supply - InputDC: 12V
Mechanical / Environment
TemperatureOperation-20° down to 70°C
Thermal Design Power (TDP)9,38 W
DimensionsWidth91,6 mm
Deep55 mm
AccessoiresHorizontal FAKRA connectors with low-profile SAMTEC connector, Vertical FAKRA connectors with high-profile SAMTEC connector, Vertical FAKRA connectors with low-profile SAMTEC connector
Certificates / Conformities
CEYes
FCCClass AYes
RoHS compliantYes
