4U Server
// 19-inch
// null
// null
// DDR5
// 5 x G-LAN (Back side)
Sales only to business customers.
Delivery time: upon request

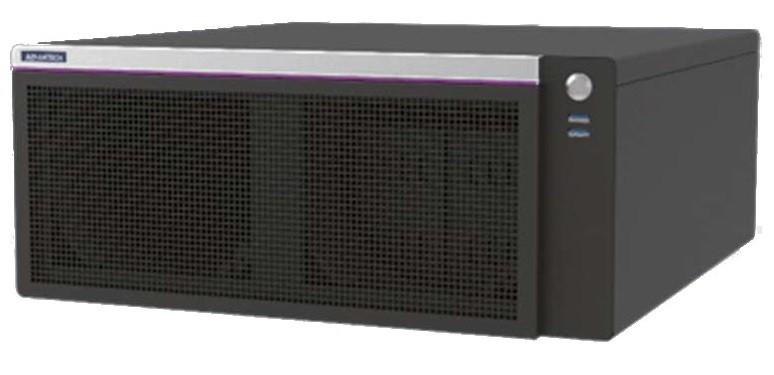

Basic Module: Advantech AIR-540
| General information | ||||
| SKU / Item Number | AIR-540 | |||
| Product Basic Data | ||||
| Manufacturer | Advantech | |||
| Product ID | AIR-540-000A1U Bare system | |||
| System | ||||
| Processor | Series | AMD EYPc 8004 Series | ||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 288-pin DDR5 DIMM | ||
| Memory Type | DDR5 | |||
| DIMM Type | Registered DIMM | |||
| DIMM data transfer rate | 4800 MT/s | |||
| Slots | 6 Pce | |||
| Maximum expansion | 576 GB | |||
| ECC (Error-Correcting Code) | is supported | |||
| BIOS | AMI UEFI 256 Mbit SPI | |||
| Extension | ||||
| PCIe x8 | Generation | 5 | ||
| x8 signal | 2 Pce | |||
| PCIe x16 | x16 signal | Generation | 5 | |
| Quantity | 4 Pce | |||
| PCIe Interfaces | 2x PCIe x8, 4x PCIe x16 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I226LM PCIe (10/100/1000/2500 Mbps) | |
| Quantity | 2 Pce | |||
| Controller | Chipset | Intel X710-AT2 (10 Gbps) | ||
| Quantity | 1 Pce | |||
| Network | 3x G-LAN | |||
| Externe I/O (Front Panel) | ||||
| USB | USB 3.2 (Gen 1) | 1 Pce | ||
| Externe I/O (Rear Panel) | ||||
| Display | VGA | 1 Pce | ||
| Ethernet | RJ-45 | 4 Pce | ||
| RJ-45 with OOB | 1 Pce | |||
| Serial | RS-232 | DB-9 | 1 Pce | |
| USB | USB 3.2 (Gen 1) | 2 Pce | ||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | v2.0 | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 40°C | ||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Dimensions | Form factor | 19-inch | ||
| Width | 438 mm | |||
| Deep | 440 mm | |||
| Height | 183 mm | |||
| Height units | 4 HE | |||
| Vibration | Vibration | 3G, 10 to 500 Hz | ||
| Reference Standard | IEC 68-2-64 | |||
| Shock | Measurement Data | 10G, half sine wave, 11 ms duration | ||
| Reference Standard | IEC 68-2-27 | |||
| Controls | Power | 1 Pce | ||
| Status indicators | Power | 1 Pce | ||
| Color | Black | |||
| Mounting option | Rackmount | |||
| OS / Software | ||||
| Windows Embedded | Windows 11 IoT | is supported | ||
| Linux | Distribution | Ubuntu 24.04 | ||
| Supported OS | Windows Embedded, Linux | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| UL | Yes | |||
| FCC | Class A | Yes | ||
| CCC | Yes | |||
| Additional certificates / compliance approvals | BSMI, CB | |||
| RoHS compliant | Yes | |||
