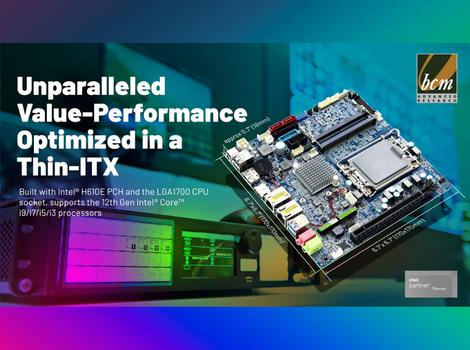

Introducing MX610HD, a value-Performance Optimized Thin-Mini ITX that supports 12th Gen Intel® Processor

BCM, USA, 26.05.2022 - The MX610HD is based on the new Intel® H610E PCH and the LGA1700 CPU socket which supports the 12th Gen Intel® Core™ i9/i7/i5/i3 processor family codenamed Alder Lake delivering unmatched scalable computing performance. The Alder Lake “H-Series” PCH offers exceptional value-performance in a low-profile Thin-ITX form factor ideal for installation behind an LCD display or embedding into a low-profile system.

The MX610HD runs on 12V-24V wide range DC power and is equipped with many game-changing technologies including DDR5, Gen 4 PCI Express (PCIe), USB 3.2, and standardized 2.5GbE Ethernet.

The MX610HD is an excellent solution for applications that require exceptional 12th Gen Intel® computing performance without some of the features offered in the “Q-Series” in order to achieve exceptional value-performance while maintaining in a thin profile design.

MX610HD Design Features

Supports DDR5 System Memory

• 2 x SODIMM sockets, DDR5 4800MHz up to 64GB

Hardware Security

• TPM 2.0 onboard

Supports 3 Independent Displays Onboard

• HDMI 2.0b 4K@60Hz. Dual Mode DisplayPort (DP++) 1.4a 4K@60Hz. 18/24-bits Dual Channel LVDS, optional eDP

High Speed I/O and Expansion Interfaces

• Intel® I225-V 2.5GbE Ethernet Controller. Gen 4 PCIe x16, M.2 NVMe, and M.2 CNVi, USB 3.2

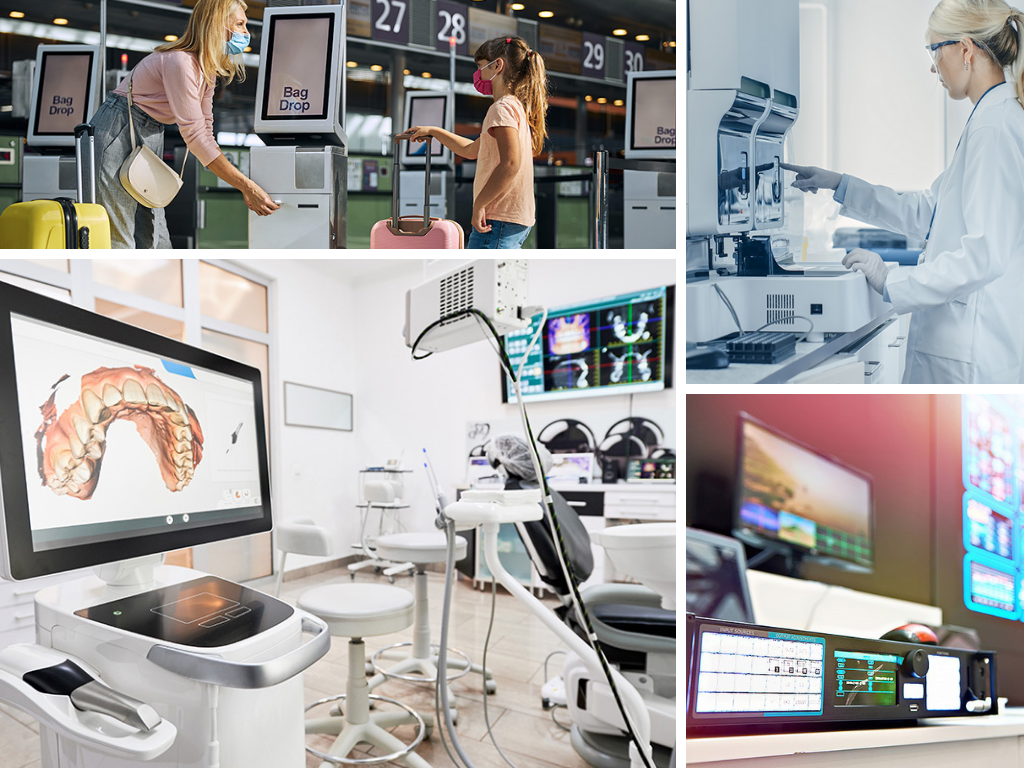

Who needs this board? Target Customer/Application

Applications that require a Low-Profile design coupled with High-Performance and up to 3 Onboard Displays

• Medical Imaging Devices, Vision Systems, Digital Signage PC, Self-Service Interactive Kiosk, Retail/Restaurant POS.

Applications that require high 12th Gen computing performance with fewer features to optimize value

• Digital A/V: Commercial Lighting Console, Network Video Recorder, Network Appliance, Video Wall Controller, Broadcast Workstation.

Applications that require upgrading performance from previous generation computing platforms

• Applications that need to support DDR5 system memory, Gen 4 PCIe expansion modules, NVMe, CNVi high speed media and USB 3.2 interfaces.

System Integrators (SI)

• SIs can use our standard MX610HD motherboard installed in a BCM building block enclosure or installed in their own certified chassis for Industrial Box PC, Industrial HMI, Server/Rackmount Controller.
