DFI NVIDIA Jetson Orin Series: Premium GMSL2 Edge AI Computing Platforms

DFI, Taipei, Taiwan, 03.02.2026 - The Business Research Company predicts the global automotive camera market will climb to $18.9 billion by 2030, with an 11.6% CAGR. Fueled by heightened safety expectations and rapid innovation, the industry is moving quickly toward multi-sensor architectures and high-performance GMSL interfaces.

At DFI, we are the computing core of this revolution. Our In-Vehicle systems and AI inference systems are engineered for robust multi-channel support, ensuring seamless GMSL camera integration. By enabling synchronized, high-bandwidth transmission across multiple video streams, we deliver the stability and compute performance required for advanced ADAS and 360° situational awareness. Transforming raw data into real-time AI inference – that’s the DFI edge.

What is GMSL?

GMSL (Gigabit Multimedia Serial Link) is a high-speed, low-latency transmission technology that carries video, control signals, and power over a single cable. GMSL and GMSL2 are widely adopted in automotive – and increasingly in industrial and embedded imaging – because they enable high-resolution video plus a bidirectional control channel over a single cable. Power delivery is commonly implemented via Power-over-Coax (PoC) system design.

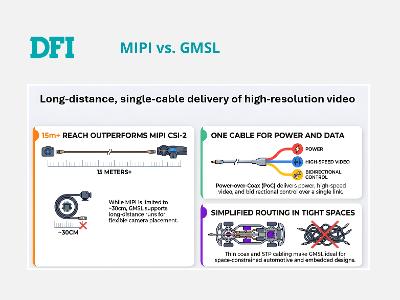

Compared with MIPI CSI-2 (D-PHY), which is typically treated as a short-reach interface (often ~30 cm-class guidance at high data rates), GMSL supports much longer cable runs – often 15 m or more depending on the channel – making it practical when the camera cannot be placed next to the processor. Thin coax also simplifies routing in space-constrained designs, especially automotive.

How does GMSL benefit AI applications?

With throughput of up to 3.125 Gbps (GMSL) per lane, and up to 6 Gbps (GMSL2) per lane, GMSL enables fast, low-latency data transfer – a requirement for industrial AI use cases where real-time decisions matter, such as autonomous systems and manufacturing robotics. It’s especially effective for AI vision applications that must continuously sense and react to their surroundings, including UGVs (Unmanned Ground Vehicles), AMRs (Autonomous Mobile Robots), and ADAS (Advanced Driver Assistance Systems).

Beyond speed, GMSL also solves a key integration challenge: distance. It can maintain signal quality over cable runs up to 15 metres, whereas MIPI/CSI is typically limited to around 300 mm, which can be restrictive for machine builders in embedded and industrial designs. The continued evolution of GMSL technology is also enabling AI applications – built on higher bandwidth, lower latency, and longer-reach video transmission – to unlock even greater potential for real-time perception, reliable decision-making, and scalable deployment.

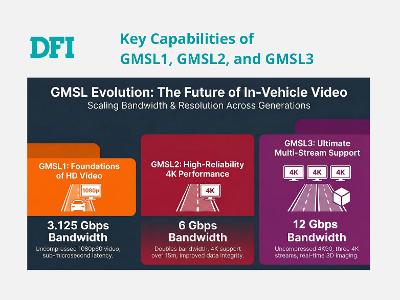

Below is a summary of the key capabilities of GMSL1, GMSL2, and GMSL3:

• GMSL1 provides stable, low-latency links for in-vehicle video transmission over coaxial cable, supporting up to 3.125 Gbps – enough for uncompressed 1080p60 with typical latency < 1 µs.

• GMSL2 increases bandwidth and reach to 6 Gbps over about 15 m, supports 4K, and improves reliability with stronger data integrity checks – ideal for bandwidth- and quality-critical applications.

• GMSL3 scales to 12 Gbps forward and 187 Mbps reverse, enabling uncompressed 4K90. It can also carry up to three 4K streams over a single PoC cable for real-time 3D imaging and surround view.

DFI NVIDIA Jetson GMSL2 Edge AI Computing Platforms

Powered by the flagship NVIDIA Jetson Orin platform, this series delivers up to 275 TOPS of AI performance and comprehensive support for GMSL2 automotive-grade interfaces, enabling low-latency, long-distance, and anti-interference high-resolution video transmission. Building on this core technology, DFI offers diverse configurations to meet specific industrial needs: the X6a-AGX features the AGX Orin module with 10G LAN and up to 8x GMSL2 ports to satisfy massive data exchange requirements; the V6Xa-ORN is engineered with IP67-rated protection, eMark certification, and 9-36V ignition control for harsh in-vehicle and outdoor environments; while the X6-ORN-GMSL combines a compact fanless design with 2x GMSL2 ports and OOB (Out-of-Band) remote management, providing reliable AI power for space-constrained intelligent vision applications.

Through its strategic partnership, DFI has brought oToBrite GMSL2 automotive camera solutions to market, enabling a more seamless vision integration experience. The collaboration helps customers access highly reliable in-vehicle video input options faster and speeds adoption and AI deployment across ADAS, surround-view and rearview displays, fleet management, and a broad range of intelligent in-vehicle applications.

X6-ORN-GMSL:

• Target Use: Compact Edge Visuals
• Jetson SOM: Orin Nano™ / NX
• Performance: Up to 157 TOPS
• GMSL2 Ports: 2x GMSL2
• Ruggedness: Industrial Fanless
• I/O Highlight: 4x USB 3.2, 4x RJ45
• Op. Temp: −20°C to 60°C
• Download: Datasheet X6-ORN-GMSL

V6Xa-ORN:

• Target Use: Ultimate Rugged IP67
• Jetson SOM: Orin Nano™ / NX
• Performance: Up to 100 TOPS
• GMSL2 Ports: Up to 8x GMSL2
• Ruggedness: IP67 Rated Enclosure
• I/O Highlight: M12 Waterproof I/O
• Op. Temp: −20°C (−40°C opt.) to 70°C
• Download: Datasheet V6Xa-ORN

X6a-AGX:

• Target Use: Mini AI Station
• Jetson SOM: AGX Orin™ Industrial
• Performance: Up to 275 TOPS
• GMSL2 Ports: Up to 8x GMSL2
• Ruggedness: Industrial Fanless
• I/O Highlight: 10G LAN, 2x USB 3.2
• Op. Temp: −20°C to 60°C
• Download: Datasheet X6a-AGX
