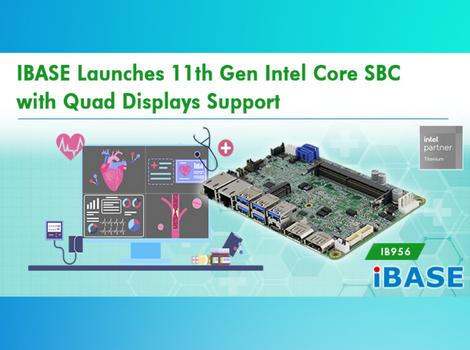

IBASE Launches 11th Gen Intel Core SBC with Quad Displays Support

IBASE, Taipei, Taiwan, 14.06.2022 - IBASE Technology Inc. (TPEx: 8050), a world leader in the manufacture of industrial and embedded computing solutions is proud to launch the IB956 high-performance single board computer in 3.5-inch form factor. Powered by 11th Gen Intel® Core™ / Celeron® processors (formerly Tiger Lake H), the versatile embedded board supports four displays through three DisplayPort and 24-bit dual channel LVDS interfaces, making it ideally suited for applications in factory automation, gaming, retail, and healthcare industries. This industrial-grade board is built to operate in both fan and fanless systems, providing 24/7 operation and high reliability.

In addition to its compact form factor, the IB956 fits up to 32GB of DDR4 SO-DIMM memory and is equipped with two Intel® 2.5 Gigabit LAN, six USB 3.1 (1x Type C & 5x Type A), two USB 2.0, two SATA III, two serial ports and two M.2 slots (2280/2230) for NVMe with PCIe(4x) and CNVi to meet all data transmission and connectivity requirements in various IoT applications. Measuring 102mm by 147mm, the IB956 runs on 12V~24V wide-range DC power and works with both Windows® 10 and Linux Ubuntu operating systems.

“Our IB956 embedded board is designed with quad-display support, allowing customers to multitask across multiple displays without additional components,” said Wilson Lin, Director of IBASE Product Planning Department. “Heat dissipation is accomplished through our optional heatsink with fan and heat spreader for installation on the bottom layer and seamless system integration, hence shrinking time to market for our clients and reducing total cost of ownership.”

IB956 FEATURES

• Onboard 11th Gen Intel® Core™ / Celeron® processor (formerly Tiger Lake H)
• 1x DDR4 SO-DIMM, Max. 32GB
• Supports 3x DisplayPort (DP connector + Type-C connector) and 24-bit Dual channel LVDS
• 2x Intel® 2.5 Gigabit LAN
• 6x USB 3.1, 2x USB 2.0, 2x SATA III, 2x COM, 2x M.2
• Watchdog timer, Digital I/O, iAMT (15), TPM (2.0)
