IEI Releases Compact DIN-Rail Fanless Embedded Systems with Optimized Performance and Efficient Thermal Design

IEI, Taiwan, 26.12.2022 - IEI Integration Corp., a leading provider of industrial computing service, introduced the DRPC-W DIN-rail embedded system series designed for IEI 3.5" single board computers. Its compact dimensions are appropriate for applications installed with limited space but requiring multiple I/O connectivity and enhanced performance. IEI DRPC-W series is designed to handle communication on the factory floor for IoT gateway, motion and vision applications.

Intel® Core™/Celeron® Quad Core Processors

Designed with 10nm Intel® Core™/Celeron® quad-core processor and Intel® UHD graphics, the DRPC-W fanless embedded system offers both energy efficiency and excellent performance, delivering up to 2 times performance improvement over the predecessor based on same base frequency. It is also equipped dual independent display ports, HDMI™ 1.4 and DisplayPort 1.4, to display videos and images in stunning 4K resolutions.

» DPRC-W-JL: Intel® Celeron® N5105

» DPRC-W-EHL: Intel® Celeron® J6412

» DPRC-W-TGL: Intel® Core™ i7-1185G7E, Intel® Core™ i5-1145G7E, Intel® Core™ i3-1115G4E, Intel® Celeron® 6305

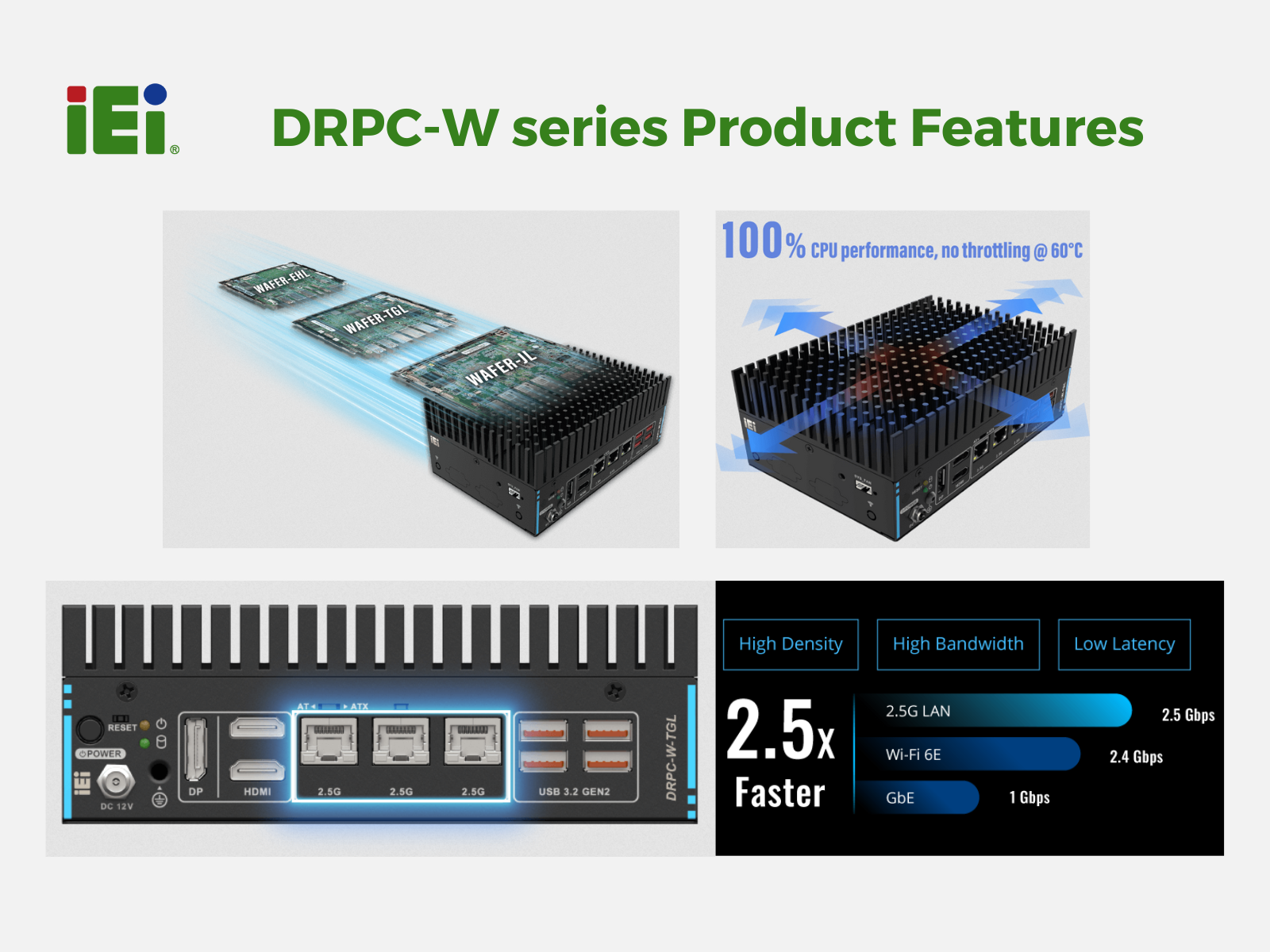

Optimized Size & Time-to-Market Customization

The DRPC-W series are compact without sacrificing the flexibility in I/O expansion that is often required for IoT scalable sensor connectivity. With customizable I/O plates, it allows customization to satisfy various requirements by using IEI's extensive 3.5" SBCs, WAFER series, offering diverse platform options from low-power to extreme performance.

Fanless System with Efficient Thermal Design

The DRPC-W's thermal design is optimized for better heat conduction using a pin-fin heatsink concept. This enhances two-dimensional heat conduction and reduces flow impedance for better heat dissipation in this fan-less system. The overall weight is also reduced by 35%, enhancing system reliability in vibration-sensitive applications, such as AGV.

Easy Assembling & Maintenance

With an easy-to-open bottom cover, the DRPC-W series can deliver advantages of quick maintenance and Configure-to-Order Service (CTOS) for customers to reduce potential time to market and cost consumption.

Up to Triple Intel® 2.5GbE Ports

The 2.5G Ethernet kicks your Ethernet connection up a notch with an up to 2.5X bandwidth improvement. The DRPC-W can meet the bandwidth-intensive requirements such as large file transfers and high resolution video streaming, which is ideal for machine vision and AI edge computing applications.

Key Features

DRPC-W-JL

» Intel® Celeron® N5105 processor

» DIN-rail palm-size for limited space

» Fanless -20°C ~ 60°C operating temp

» 3 x 2.5 GbE, 2 x USB 3.2

» Dual display via HDMI™ & DP

» 1 x M.2 A key for Wi-Fi & BT

» 1 x M.2 B key for 5G/NVMe/AI accelerator

DRPC-W-EHL

» Intel® Celeron® J6412 processor

» DIN-rail palm-size for limited space

» Fanless -20°C ~ 60°C operating temp

» 2 x 2.5 GbE, 2 x USB 3.2

» Dual display via HDMI™ & DP

» 1 x M.2 A key 2230 for Wi-Fi & BT

» 1 x M.2 B key for 5G

DRPC-W-TGL

» Intel® Core™ i5-1145G7E/Intel® Celeron® 6305 processor

» DIN-rail palm-size for limited space

» Fanless -20°C ~ 60°C operating temp

» 3 x 2.5 GbE, 4 x USB 3.2

» Triple display via 2 HDMI™ & DP

» 1 x M.2 A key 2230 for Wi-Fi & BT

» 1 x M.2 B key for 5G
