IEI Reveals Next-generation Industrial Mini PC for Business and IIoT Deployment

IEI, Taiwan, 10.01.2023 - IEI Integration Corp., a leading provider of industrial computer, released the TANGO-3010, an industrial mini PC with a space-saving chassis measuring only 5.5 x 5.4 x 1.6 inches. It is powered by a quad-core Intel® Celeron® J6412 processor with Intel® UHD graphics, and can accommodate 2.5-inch SSD and M.2 NVMe SSD via PCIe Gen3 x4. The mini PC can be set up in an instant and taken almost anywhere, even in harsh environments, making it ideal for enterprise, digital signage, industrial data transmission gateway and self-service applications.

Portable & Compactness, Ready for Any Scenario

The TANGO-3010 is very compact in size and light in weigh. You can easily set up a stand-alone workspace wherever you have power, Wi-Fi connection and a display. In addition to regular desktop setting, this full-function PC can be mounted alongside or behind a display to fit various needs of different scenario.

Intel® Quad-Core Processor with 8GB LPDDR4x Memory

Powered by Intel Celeron J6412 processor with Intel UHD Graphics, the TANGO-3010 can deliver high levels of CPU and graphics performance at low power. It provides up to 2.6 GHz burst frequency and 73% performance improvement over previous generation. 8GB LPDDR4X memory is soldered on board to bring the benefits with faster memory speeds, lower voltage and reliable hardware.

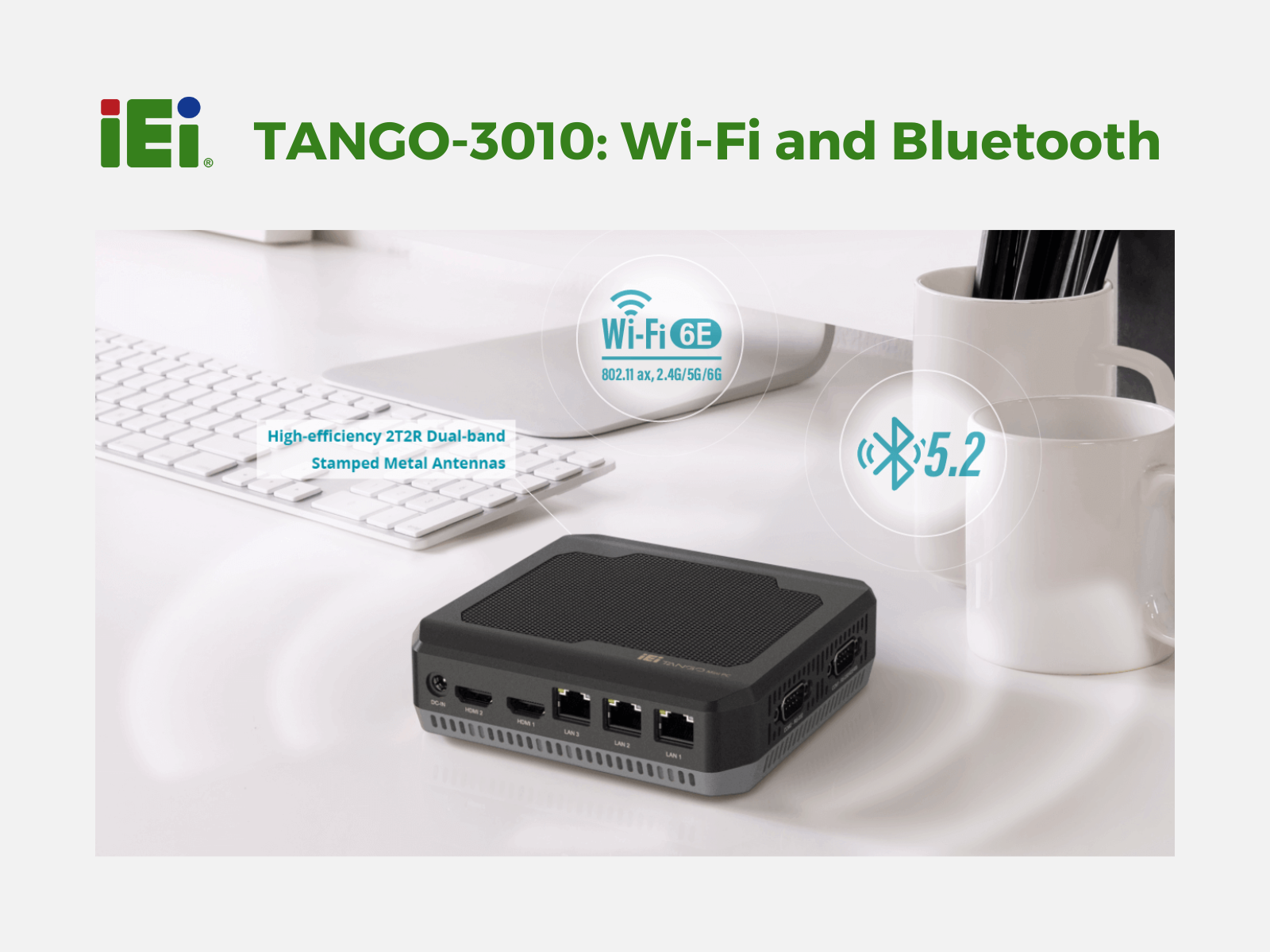

Tri-Band Wi-Fi 6E and Bluetooth 5.2 with Embedded Antennas

The mini PC also has strong wireless network capability for high volume applications of smart cities. It features the latest Wi-Fi 6E and Bluetooth 5.2 technologies. With the internal antennas, cable interference can be eliminated to maintain stable performance.

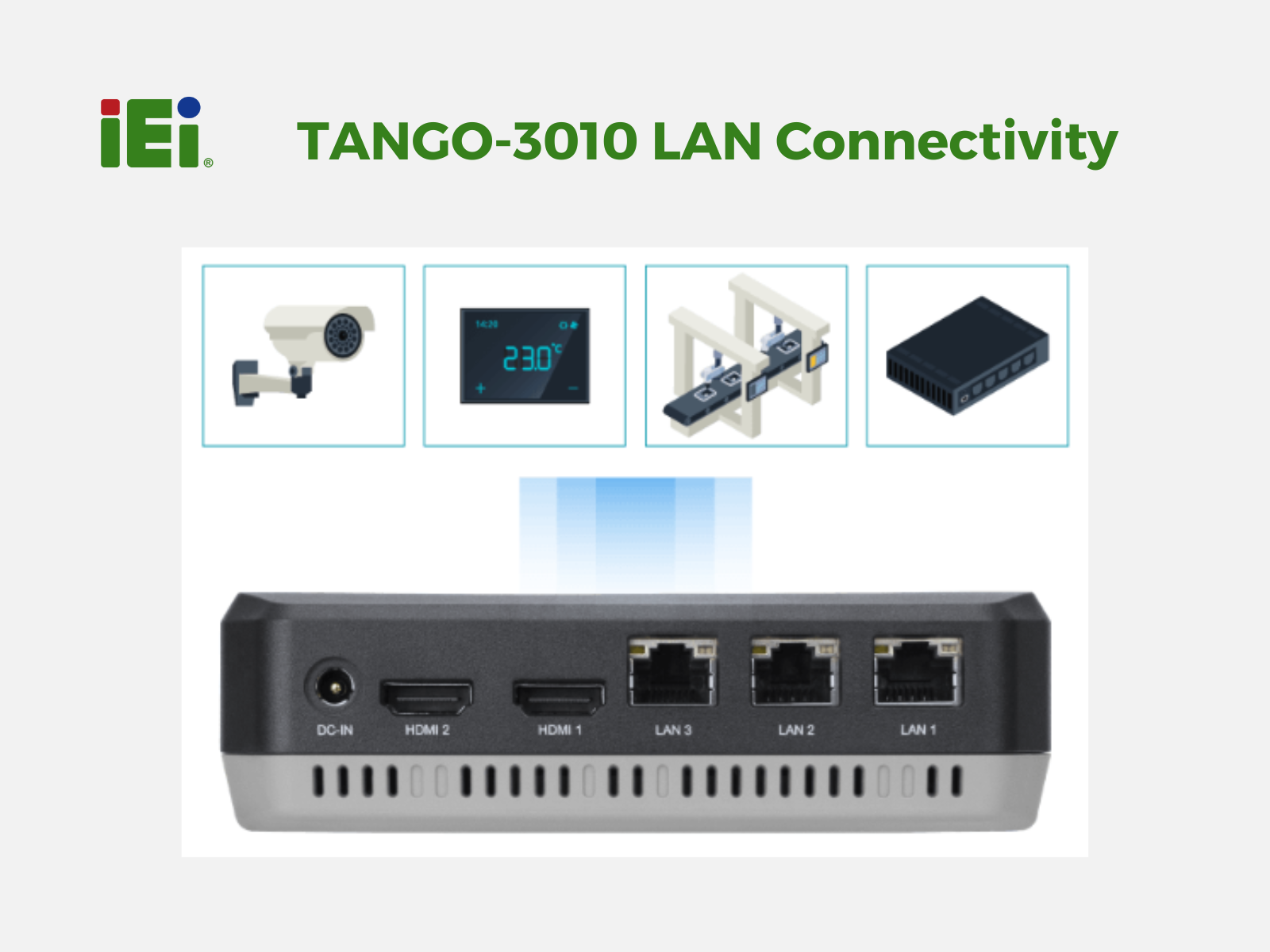

Triple Low-latency 2.5GbE Ports Boost for Your Applications

All of the three RJ45 LAN ports provide 2.5 gigabit Ethernet connectivity that gives an immediate boost to overall network performance and improves the bandwidth required at large-scale workloads.

Easily Expandable Storage

With an easy-to-open underside panel, the TANGO-3010 can be upgraded in minutes. Only few steps are required to install M.2 NVMe SSD and SATA SSD, delivering quick maintenance and Configure-to-Order Service for you.

Key Features

• Fanless compact system
• Intel® Celeron® J6412 2.0 GHz (up to 2.6 GHz, quad-core, TDP 10W)
• Triple 2.5GbE LAN, Wi-Fi 6E & Bluetooth 5.2 via internal antenna
• 4K high-definition dual display with built-in CEC
• 1 x RS-232, 1 x RS-232/422/485
• 2 x USB 10Gb/s, 2 x USB 2.0
