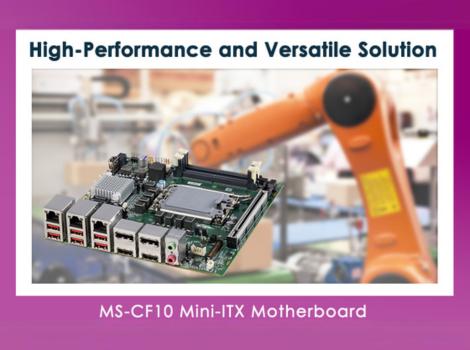

Introducing the MS-CF10 Mini-ITX Motherboard: A High-Performance and Versatile Solution for Modern Applications
![](/images/cimg/3422_s500.jpg)
MSI, Taiwan, 20.08.2024 - We are excited to announce the launch of the MS-CF10 Mini-ITX motherboard, designed to deliver exceptional performance and versatility for a wide range of applications. Powered by the latest 14th/13th/12th Gen Intel® Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S series processors, including Core™ i9/i7/i5/i3, Pentium®, and Celeron® processors, the MS-CF10 is engineered to meet the demands of high-performance computing solutions.
Key Features
- Advanced Processor Support: The MS-CF10 supports Intel® 14th/13th/12th Gen Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S series processors with R680E/Q670E/H610E chipsets, ensuring top-tier performance and efficiency.
- High-Speed Memory: Equipped with 2 DDR5 5200 MT/s ECC/non-ECC SODIMM slots, the motherboard supports up to 64GB of memory, providing robust data handling capabilities.
- Multiple Display Outputs: Featuring quadruple independent displays with 2 DP, HDMI 2.0, and LVDS/eDP, the MS-CF10 is ideal for applications requiring multiple high-resolution screens.
- Enhanced Connectivity: The motherboard includes 3 2.5GbE LAN ports with RJ-45, ensuring high-speed network connections for data-intensive tasks.
- Expansion and Storage Options: With 1 PCIe x16 (Gen 5) slot, 1 M.2 E key (with CNVi), 1 M.2 B key (with SIM Holder), M.2 M key, and 2 SATA 3.0 ports, the MS-CF10 offers extensive expansion and storage capabilities, including support for SATA RAID 0/1/5.
- Comprehensive I/O Ports: The MS-CF10 features 6 USB 10Gbps, 2 USB 5Gbps, 3 USB 2.0, 4 COM (4 RS-485), GPIO, Audio, and System FAN ports, ensuring seamless connectivity with various devices.
- Security and Management: Onboard TPM 2.0 and support for SMBus and iAMT 16.x provide enhanced security and remote management features.
- Wide Voltage Support: The motherboard supports a wide voltage DC-IN range of 8-48V, making it adaptable to diverse power environments.
Based on these specifications, the MS-CF10 Mini-ITX motherboard offers powerful performance and versatility, making it ideal for the following application industries:
- High-Performance Processor: Equipped with 14th/13th/12th Gen Intel® Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S series processors, ensuring fast and efficient data processing.
- Multi-Display Support: Supports four independent displays, suitable for automation control systems requiring multiple monitoring screens.
- Rich I/O Ports: Includes 6 USB 10Gbps and 3 2.5GbE LAN ports, facilitating connection to various devices and sensors.
Digital Signage and Advertising
- High-Resolution Display Output: Supports 2 DP and HDMI 2.0 ports, ideal for high-resolution digital signage applications.
- Powerful Graphics Processing: Features a PCIe x16 (Gen 5) slot for high-performance graphics cards.
- Flexible Storage Options: Includes M.2 and SATA 3.0 interfaces, supporting RAID 0/1/5, ensuring fast data read and write speeds.
Medical Equipment
- High Reliability and Stability: DDR5 ECC/non-ECC memory slots, up to 64GB, ensuring data integrity and system stability.
- Various Connectivity Options: Includes multiple USB and COM ports, facilitating connection to various medical devices.
- TPM 2.0 and iAMT 16.x: Enhanced security and remote management features, meeting the medical industry's needs for data security and remote diagnostics.
Edge Computing
- Powerful Processing Capability: High-performance Intel® processors and rich I/O ports, suitable for handling large data analysis and real-time computing tasks.
- Wide Voltage Support: DC-IN 8-48V, adaptable to various power environments.
- Multiple Expansion Options: Supports PCIe and M.2 expansion, facilitating the integration of different functional modules.
Security Surveillance
- Multi-Display Output: Supports up to four independent displays, suitable for security systems requiring multi-screen monitoring.
- High-Bandwidth Network Connection: 3 2.5GbE LAN ports, suitable for high-bandwidth video data transmission.
- Rich Connectivity Options: Multiple USB and COM ports, facilitating connection to cameras and other surveillance equipment.
These industries can fully leverage the high performance, versatility, and expandability of the MS-CF10 Mini-ITX motherboard to meet their specific application needs.
MSI remains at the forefront of the industry by delivering cutting-edge solutions that cater to the ever-changing demands of its customers.
