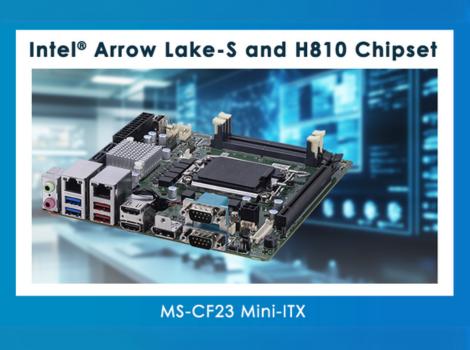

MS-CF23 Mini-ITX: Optimized for Embedded Systems with Intel® Arrow Lake-S and H810 Chipset

MSI IPC, Taiwan, 13.06.2025 - MSI IPC is proud to unveil the MS-CF23, a high-performance Mini-ITX motherboard designed for mainstream embedded and industrial applications. Powered by the latest 15th Gen Intel® Arrow Lake-S Core™ Ultra 9/7/5 Series processors and integrated with the Intel® H810 chipset, the MS-CF23 delivers exceptional processing power, enhanced connectivity, and maximum flexibility in a compact size.

Notably, the Arrow Lake Core Ultra processors are Intel’s first to include an integrated Neural Processing Unit (NPU), bringing dedicated AI acceleration directly on the chip for smarter and faster edge computing.

Engineered to meet diverse application needs such as digital signage, automation, and edge computing, the MS-CF23 offers rich I/O, scalable memory support, and advanced display capabilities, all with robust reliability and simple integration.

Ideal for applications such as automation, digital signage, and edge computing, the MS-CF23 is packed with features to support robust computing and connectivity:

15th Gen Intel® Arrow Lake-S Core™ Ultra 9/7/5 Processors with Intel® H810

Delivers enhanced performance and efficiency for next-generation embedded applications.

Supports up to 96GB DDR5 5600 MT/s

Equipped with 2 SODIMM/CSODIMM slots for high-speed, high-capacity memory configurations.

Triple Independent Display Support (DP, HDMI, LVDS)

Enables multi-screen output for advanced visual applications and user interfaces.

Dual LAN Ports: 1 x 2.5GbE & 1 x 1GbE RJ-45

Provides high-speed and redundant network connectivity.

1 x PCIe x16 (Gen 5) Slot

Supports high-bandwidth expansion cards for advanced computing or graphics needs.

1 x M.2 E Key Slot

Ideal for wireless modules or other expansion options.

1 x M.2 M Key & 3 x SATA 3.0 Ports

Flexible and scalable storage solutions for SSDs and HDDs.

Rich I/O Interface

Includes 2 x USB 3.2 Gen 2, 2 x USB 3.2 Gen 1, 5 x USB 2.0, 4 x COM ports (1 x RS-485), GPIO, audio, and system fan headers for comprehensive connectivity.

Onboard TPM 2.0

Hardware-based security for data protection and secure boot.

SMBus Support

Facilitates system monitoring and communication in embedded environments.

Standard ATX Power Input

Ensures compatibility with conventional power supplies for easier integration.

The MS-CF23 Mini-ITX is designed for space-constrained environments requiring reliable, high-performance computing, the MS-CF23 is a smart choice for developers and system integrators in industrial and commercial markets.
