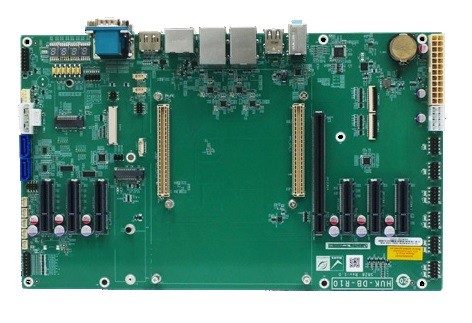

COM-HPC Carrier Board
// COM-HPC Carrier Board
// 2 x G-LAN
// 6 x USB
// 8 x Seriell I/O
// Digital I/O (12-Bit)
// 5 x PCIe x4
// 1 x PCIe x16
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: IEI HUK-DB
| Allgemein | ||||
| SKU / Artikelnummer | HUK-DB | |||
| Produktgrunddaten | ||||
| Hersteller | IEI | |||
| Produkt-ID | HUK-DB-R10 | |||
| Grafik | ||||
| HDMI | Maximale Auflösung | 4096 x 2304 bei 30 Hz | ||
| Version | 1.4 | |||
| Displayport | Maximale Auflösung | 4096 x 2304 bei 60 Hz | ||
| Version | 1.2 | |||
| Erweiterung | ||||
| PCIe x4 | x2 Signal | 1 St | ||
| x4 Signal | 5 St | |||
| PCIe x16 | x16 Signal | Generation | 5 | |
| Anzahl | 1 St | |||
| PCIe Schnittstellen | 6x PCIe x4, 1x PCIe x16 | |||
| M.2 | Slot 1 | Key ID | M | |
| Interface | PCIe ×2 (Gen. 3) | |||
| Unterstütze Abmaße | 2242, 2280 | |||
| Slot 2 | Key ID | A | ||
| Interface | PCIe ×2 (Gen. 3), USB 2.0 | |||
| Unterstütze Abmaße | 2230 | |||
| M.2 Key IDs | A, M | |||
| Audio | ||||
| Chipsatz | Realtek ALC888S-VD2-GR | |||

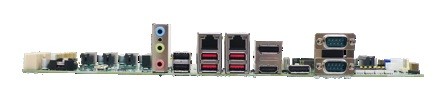

| Externe I/O | ||||
| Ethernet | RJ-45 | 2 St | ||
| USB | USB v2.0 | 2 St | ||
| USB v3.2 (Gen 1) | 4 St | |||
| Seriell | RS-232 / 422 / 485 | DB-9 | 2 St | |
| Anzeige | HDMI | 1 St | ||
| Displayport | 2 St | |||
| Audio | Line-In | 1 St | ||
| Line-Out | 1 St | |||
| Mic-In | 1 St | |||
| Interne I/O | ||||
| Seriell | RS-232 | Ports (2.00 mm Pitch) | 6 St | |
| Anzeige | eDP (embedded Display Port) Lanes | 1 St | ||
| Digital I/O | Bits | 12-Bit | 1 St | |
| SMBus | 1 St | |||
| Serial Peripheral Interface (SPI) | 1 St | |||
| I²C | 1 St | |||
| Image Capture Interfaces | Kamera Eingang 1 | MIPI-CSI (Camera Serial Interface) | 2 St | |
| Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 2 St | ||
| Mechanik / Umgebung | ||||
| Abmaße | Breite | 315 mm | ||
| Tiefe | 190 mm | |||
| Zertifikate / Konformitäten | ||||
| CE | Ja | |||
| FCC | Class A | Ja | ||
| RoHS konform | Ja | |||
