ATX Mainboards
// ATX Industrie-Mainboards
// LGA 1851
// Intel Q870
// 288 Pin DIMM DDR5
// 2 x G-LAN (Back side)
// 4 x USB (Back side)
// 4 x USB (internal)
// 2 x Seriell I/O
// Digital I/O (8-Bit)
// 2 x PCI
// 1 x PCIe x1
// 2 x PCIe x4
// 1 x PCIe x16
// Power Supply ATX
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

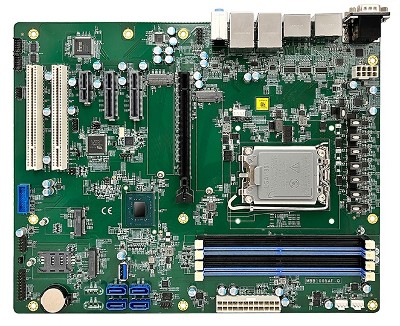

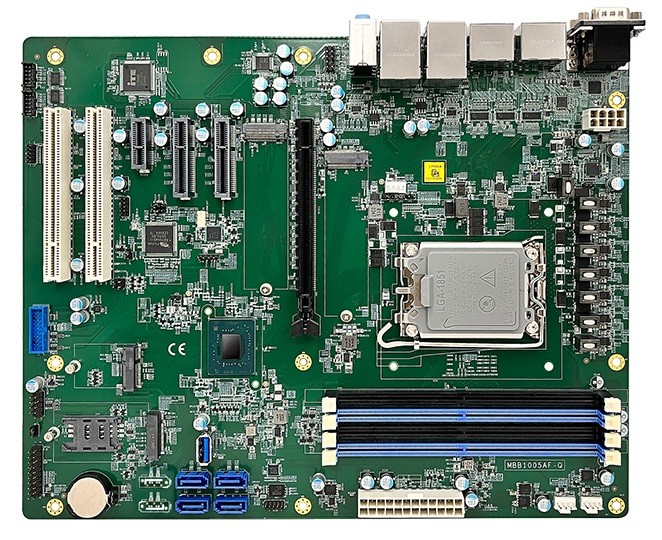

Basismodul: IBASE MBB1005
| Allgemein | ||||
| SKU / Artikelnummer | MBB1005 | |||
| Produktgrunddaten | ||||
| Hersteller | IBASE | |||
| Produkt-ID | MBB1005AF-Q | |||
| System | ||||
| Prozessor | Serie | Intel Arrow Lake | ||
| Sockel | LGA 1851 | |||
| Thermal Design Power (TDP) | 65 W | |||
| Chipsatz | Intel Q870 | |||
| Speicher | Aufbau | 288 Pin DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| DIMM Type | Unbuffered DIMM | |||
| Frequenz | 5600 MHz | |||
| Steckplätze | 4 St | |||
| Maximaler Ausbau | 192 GB | |||
| BIOS | AMI BIOS | |||
| I/O Controller | Controller 1 | I/O Controller | Fintek F81964D-I | |
| Grafik | ||||
| Bildschirme (Multidisplay) | 4 Displays | |||
| HDMI | Version | 2.0b | ||
| Displayport | Version | 1.4a | ||
| Dual Mode | Ja (DP++) | |||
| Erweiterung | ||||
| PCI | Anzahl | 2 St | ||
| PCI Schnittstellen | 2x PCI | |||
| PCIe x1 | Generation | 4 | ||
| x1 Signal | 1 St | |||
| PCIe x4 | Generation | 4 | ||
| x4 Signal | 2 St | |||
| PCIe x16 | x16 Signal | Generation | 5 | |
| Anzahl | 1 St | |||
| PCIe Schnittstellen | 1x PCIe x1, 2x PCIe x4, 1x PCIe x16 | |||
| M.2 | Slot 1 | Key ID | M | |
| Interface | PCIe ×4 (Gen. 5) | |||
| Unterstütze Abmaße | 2280 | |||
| Slot 2 | Key ID | M | ||
| Interface | PCIe ×4 (Gen. 4) | |||
| Unterstütze Abmaße | 2280 | |||
| Slot 3 | Key ID | E | ||
| Interface | CNVi, PCIe ×1 (Gen. 3), USB 2.0 | |||
| Unterstütze Abmaße | 2230 | |||
| Slot 4 | Key ID | B | ||
| Interface | PCIe ×1 (Gen. 3), USB 3.2 Gen1 | |||
| Unterstütze Abmaße | 3052 | |||
| M.2 Key IDs | E, M | |||
| SIM | Anzahl | 1 St | ||
| Formfaktor (Slot) | Micro SIM | |||
| Storage | M.2 | |||
| Audio | ||||
| Chipsatz | Realtek ALC888S-VD2-GR | |||
| Netzwerk | ||||
| G-LAN | Controller | Chipsatz | Intel I226LM PCIe (10/100/1000/2500 Mbps) | |
| Anzahl | 1 St | |||
| Controller | Chipsatz | Intel I226V PCIe (10/100/1000/2500 Mbps) | ||
| Anzahl | 1 St | |||
| Active Management Technology (AMT) Version | 19.0 | |||
| Netzwerk | 2x G-LAN | |||

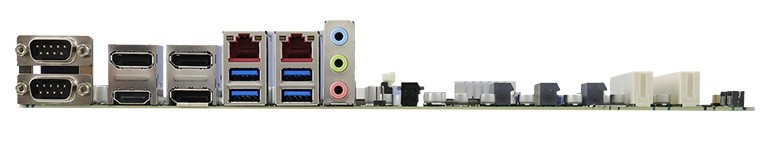

| Externe I/O (Rückseite) | ||||
| Anzeige | HDMI | 1 St | ||
| DP++ | 3 St | |||
| Audio | Line-In | 1 St | ||
| Line-Out | 1 St | |||
| Mic-In | 1 St | |||
| Ethernet | RJ-45 | 2 St | ||
| Seriell | RS-232 / 422 / 485 | DB-9 | 2 St | |
| USB | USB v3.2 (Gen 2) | 4 St | ||
| Interne I/O | ||||
| USB | USB v2.0 | Ports (2.54 mm Pitch) | 2 St | |
| USB v3.2 | Ports (Typ-A-Buchse) | 1 St | ||
| Key-A Header (20-Pin) | 1 St | |||
| Seriell | RS-232 | Ports (2.00 mm Pitch) | 2 St | |
| Digital I/O | Bits | 8-Bit | 1 St | |
| Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 4 St | ||
| Watchdog Zeitgeber | ||||
| Watchdog Zeitgeber | Ja | |||
| Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
| Sicherheit | ||||
| Trusted Platform Modul (TPM) | dTPM 2.0 (Hardware) | |||
| Stromversorgung | ||||
| Typ (Eingang) | ATX | Anschluss | 8-Pin ATX (12V DC), 24-Pin ATX | |
| Stromversorgung - Eingang | ATX: 8-Pin ATX (12V DC), 24-Pin ATX | |||
| Real-Time Clock (RTC) Batterie | CR2032 Knopfbatterie | |||
| iSMART | v4.0 | |||
| Mechanik / Umgebung | ||||
| Temperatur | Betrieb | 0° bis 60°C | ||
| Lagerung | -20° bis 80°C | |||
| Relative Luftfeuchtigkeit | Betrieb | 5 bis 90%, nicht kondensierend | ||
| Abmaße | Formfaktor | ATX | ||
| Breite | 305 mm | |||
| Tiefe | 244 mm | |||
| Zertifikate / Konformitäten | ||||
| CE | Ja | |||
| FCC | Class A | Ja | ||
| RoHS konform | Ja | |||
