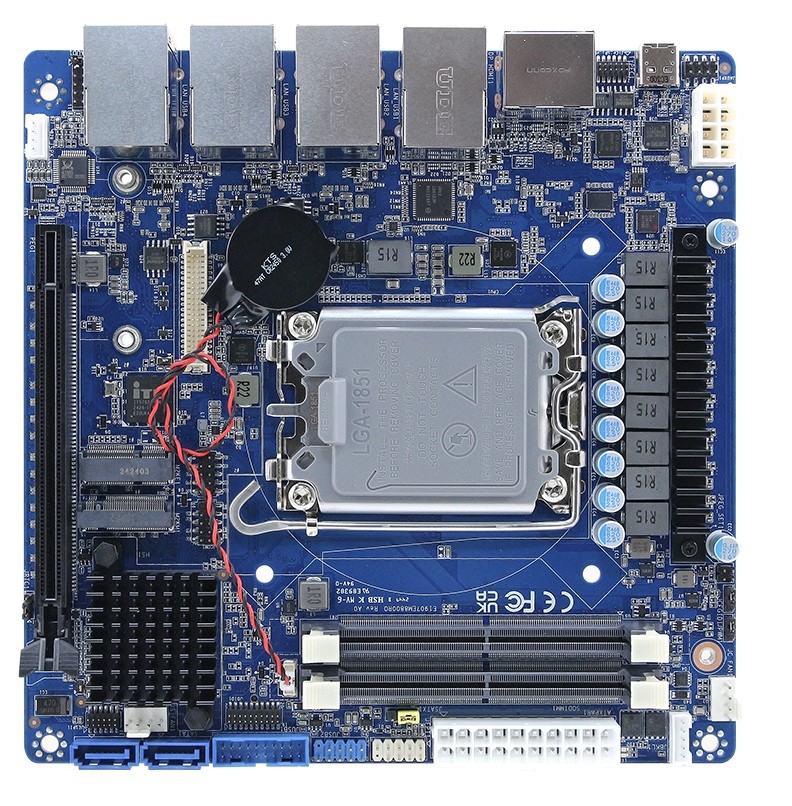

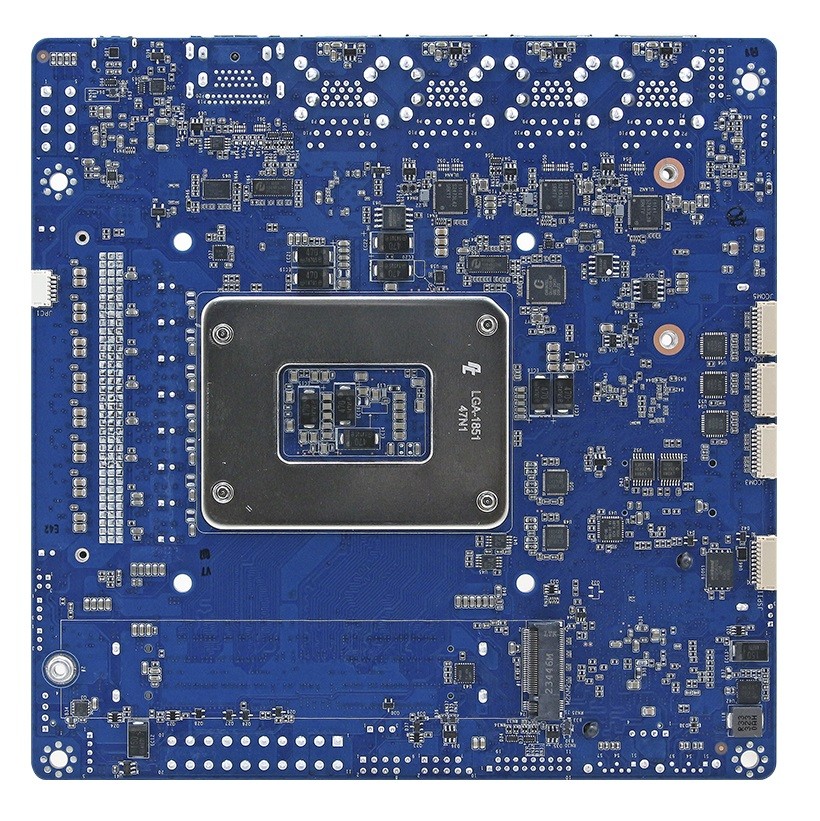

Avalue EMX-W880P

Mini-ITX Mainboards

PRODUKT-FEATURES

// Mini-ITX Industrie-Mainboards
// LGA 1851
// Intel W880
// 262 Pin SO-DIMM DDR5
// LVDS
// 4 x G-LAN (Rückseite)
// 8 x USB (Rückseite)
// 3 x USB (intern)
// 5 x Seriell I/O
// Digital I/O (16-Bit)
// 1 x PCIe x16
// Stromversorgung ATX

PRODUKTPREIS

Preise und Lieferzeiten sind für registrierte und angemeldete Kunden sichtbar. Neukunden können diese unverbindlich anfragen.

Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

PRODUKTINFORMATIONEN

Basismodul: Avalue EMX-W880P

Allgemein
SKU / ArtikelnummerEMX-W880P
Produktgrunddaten
HerstellerAvalue
Produkt-IDEMX-W880P-A1R
System
ProzessorSerieIntel Arrow Lake
SockelLGA 1851
Thermal Design Power (TDP)125 W
ChipsatzIntel W880
SpeicherAufbau262 Pin SO-DIMM DDR5
DIMM TypeUnbuffered SO-DIMM
Frequenz5600 MHz
Steckplätze2 St
Maximaler Ausbau64 GB
BIOSAMI UEFI 256 Mbit SPI
I/O ControllerController 1I/O ControllerNuvoton NCT6126D
Grafik
Bildschirme (Multidisplay)4 Displays
HDMIMaximale Auflösung7680 x 4320 bei 60 Hz
Version2.1
DisplayportMaximale Auflösung7680 x 4320 bei 60 Hz
Version2.1
LVDSMaximale Auflösung1920 x 1080 bei 60 Hz
Bits24 Bit
BridgeChrontel CH7513A-BF
eDP (embedded Display Port)Maximale Auflösung1920 x 1080 bei 60 Hz
Erweiterung
PCIe x16x16 SignalGeneration5
Anzahl1 St
PCIe Schnittstellen1x PCIe x16
M.2Slot 1Key IDE
InterfacePCIe ×2 (Gen. 4), USB 2.0, WLAN
Unterstütze Abmaße2230
Slot 2Key IDM
InterfacePCIe ×4 (Gen. 4), SATA III
Unterstütze Abmaße2242, 2280
Slot 3Key IDM
InterfacePCIe ×4 (Gen. 4)
Unterstütze Abmaße2280
M.2 Key IDsE, M
StorageM.2
Audio
ChipsatzRealtek ALC888S-VD2-GR
Netzwerk
G-LANControllerChipsatzIntel I226LM PCIe (10/100/1000/2500 Mbps)
Anzahl1 St
ControllerChipsatzIntel I226V PCIe (10/100/1000/2500 Mbps)
Anzahl2 St
ControllerChipsatzIntel I210AT PCIe (10/100/1000 Mbps)
Anzahl1 St
Netzwerk4x G-LAN

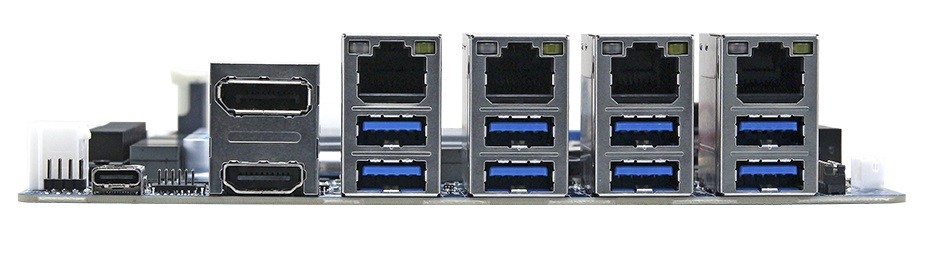

Externe I/O (Rückseite)
AnzeigeHDMI1 St
DP++1 St
DP USB-C1 St
EthernetRJ-454 St
USBUSB v3.2 (Gen 1)4 St
USB v3.2 (Gen 2)4 St
USB v4.0 Type CSpezifikationGeneration 2
TunnelingDisplay Port v.1.4
Interne I/O
USBUSB v2.0Ports (2.54 mm Pitch)2 St
USB v3.2Key-A Header (20-Pin)1 St
GenerationGen. 2
SeriellRS-232Ports (2.00 mm Pitch)3 St
RS-232 / 422 / 485Ports (2.00 mm Pitch)2 St
AnzeigeLVDSDual Channel
LVDS Anschlüsse1 St
eDP (embedded Display Port) Lanes 2 St
Digital I/OBits16-Bit1 St
AudioAnschluss2.00 mm Pitch
Line-Out1 St
Mic-In1 St
Amplifier2 St
Serial-ATAS-ATA R3.0 (6 Gbit/s, 600 MB/s)2 St
Raid UnterstützungRAID 0/1wird unterstützt
RAID UnterstützungRAID 0/1
Sicherheit
Trusted Platform Modul (TPM)Nuvoton NPCT760AABYX
Stromversorgung
Typ (Eingang)ATXAnschluss8-Pin ATX (12V DC), 24-Pin ATX
Stromversorgung - EingangATX: 8-Pin ATX (12V DC), 24-Pin ATX
Real-Time Clock (RTC) BatterieCR2032 Knopfbatterie
Betriebssysteme / Software
WindowsWindows 11Wird unterstützt
LinuxDistributionLinux
Unterstützte BSWindows, Linux
Mechanik / Umgebung
TemperaturBetrieb0° bis 60°C
Lagerung-40° bis 75°C
Relative LuftfeuchtigkeitBetrieb5 bis 95%, nicht kondensierend
AbmaßeFormfaktorMini-ITX
Breite170 mm
Tiefe170 mm
Gewicht400 g
Zertifikate / Konformitäten
CEJa
FCCClass BJa
RoHS konformJa
