2.5" Mainboards
2.5" Industrie-Mainboards
AMD Ryzen Embedded R2312
SoC (System-On-Chip)
LVDS
2 x G-LAN (Rückseite)
2 x USB (Rückseite)
3 x USB (intern)
4 x Seriell I/O
Digital I/O (8-Bit)
Stromversorgung DC 12V
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

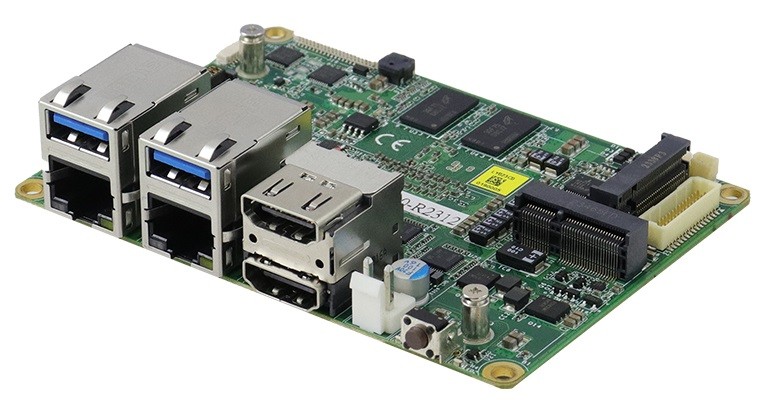

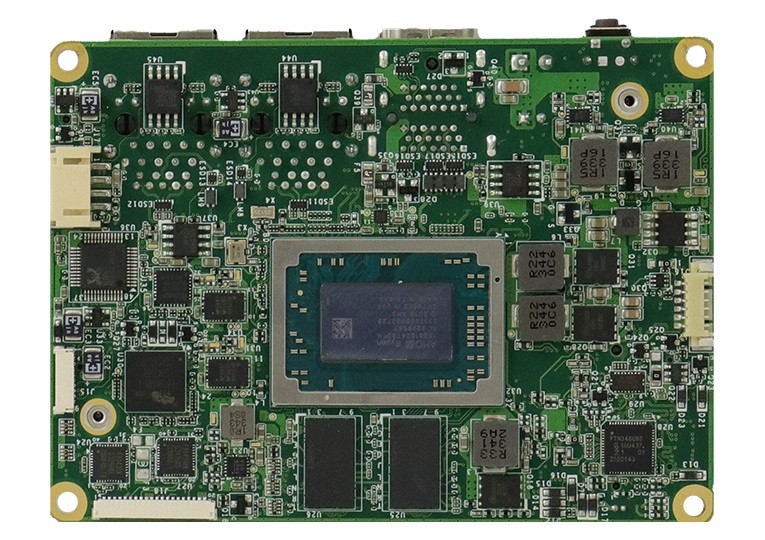

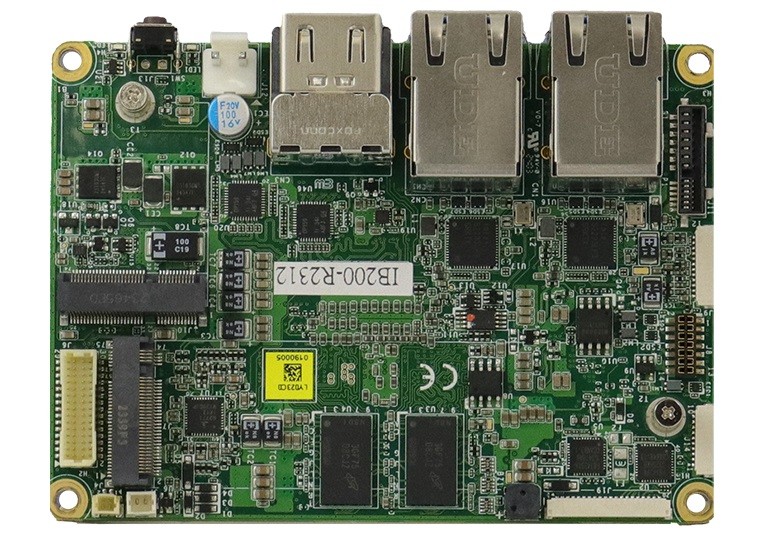

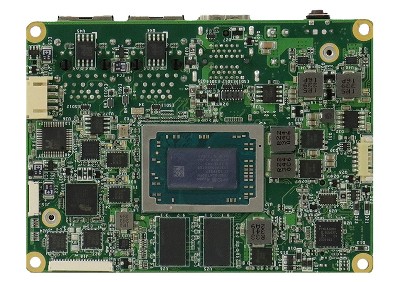

Basismodul: IBASE IB200
Allgemein | ||||
SKU / Artikelnummer | IB200 | |||
Produktgrunddaten | ||||
Hersteller | IBASE | |||
System | ||||
Prozessor | Vertikales Segment | Embedded | ||
Serie | AMD Ryzen Embedded R2000 | |||
Nummer | AMD Ryzen Embedded R2312 | |||
CPU Kerne | 2 St | |||
Threads | 4 St | |||
Basis Frequenz | 2,7 GHz | |||
Max. Turbo-Taktfrequenz | 3,5 GHz | |||
Thermal Design Power (TDP) | 25 W | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Memory Type | DDR4 | ||
Maximaler Ausbau | 8 GB | |||
BIOS | AMI BIOS | |||
I/O Controller | Controller 1 | I/O Controller | Fintek F81866AD-I | |
Grafik | ||||
Prozessor | AMD Radeon Vega | |||
Bildschirme (Multidisplay) | 3 Displays | |||
HDMI | Version | 2.0b | ||
LVDS | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
Bits | 24 Bit | |||
Erweiterung | ||||
M.2 | Slot 1 | Key ID | M | |
Interface | NVMe | |||
Unterstütze Abmaße | 2280 | |||
Slot 2 | Key ID | E | ||
Interface | WiFi+BT | |||
Unterstütze Abmaße | 2230 | |||
M.2 Key IDs | E, M | |||
Storage | M.2 | |||
Audio | ||||
Chipsatz | Realtek ALC888S-VD2-GR | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I226IT PCIe (10/100/1000/2500 Mbps) | |
Anzahl | 2 St | |||
Netzwerk | 2x G-LAN | |||
Externe I/O (Rückseite) | ||||
Anzeige | HDMI | 2 St | ||
Ethernet | RJ-45 | 2 St | ||
USB | USB v3.2 (Gen 2) | 2 St | ||
Interne I/O | ||||
USB | USB v2.0 | Ports (2.00 mm Pitch) | 3 St | |
Seriell | RS-232 | Ports (Sonderanschluss) | 2 St | |
RS-232 / 422 / 485 | Ports (Sonderanschluss) | 2 St | ||
Anzeige | LVDS | Dual Channel | ||
LVDS Anschlüsse | 1 St | |||
Digital I/O | Bits | 8-Bit | 1 St | |
Audio | Anschluss | 2.00 mm Pitch | ||
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 1 St | ||
Stromanschluss (onboard) | 1 St | |||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | v2.0 | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Nein | |
Bereich | 12V | |||
Anschluss | 2 Pin Anschluss (vertikal) | |||
Stromversorgung - Eingang | DC: 12V | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 60°C | ||
Lagerung | -20° bis 80°C | |||
Relative Luftfeuchtigkeit | Betrieb | 10 bis 90%, nicht kondensierend | ||
Abmaße | Formfaktor | 2.5" | ||
Breite | 100 mm | |||
Tiefe | 72 mm | |||
Bedienelemente | Power | 1 St |
